Removal Procedure

WARNING:

Refer to Gasoline/Gasoline Vapors Warning .

  1. Remove the primary fuel tank module. Refer to Primary Fuel Tank Module Replacement .
    2. Fig 1: Identifying Fuel Level Sensor Electrical Connector Locking Tab
    GM2030024Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not pull on the connector wires.

  2. Press in the locking tab (1) and disconnect the fuel level sensor electrical connector.

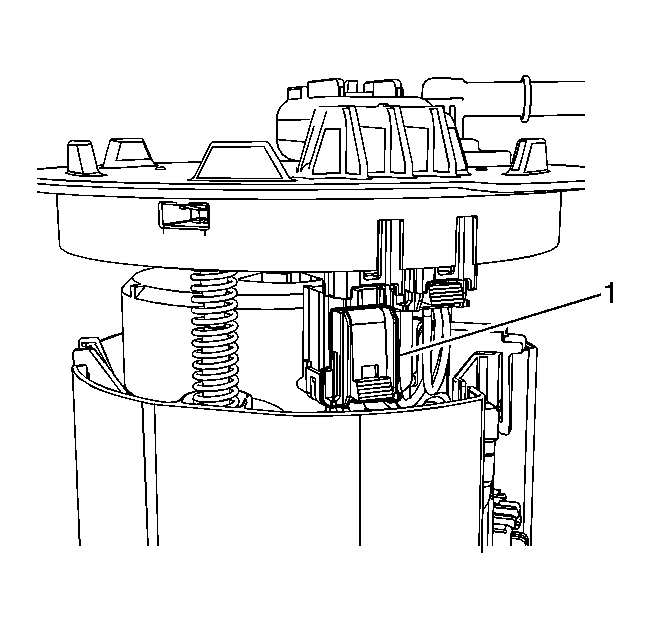

    3. Fig 2: Identifying Fuel Level Sensor Electrical Connector
    GM2029120Courtesy of GENERAL MOTORS COMPANY
  3. Disconnect the fuel level sensor electrical connector (1).

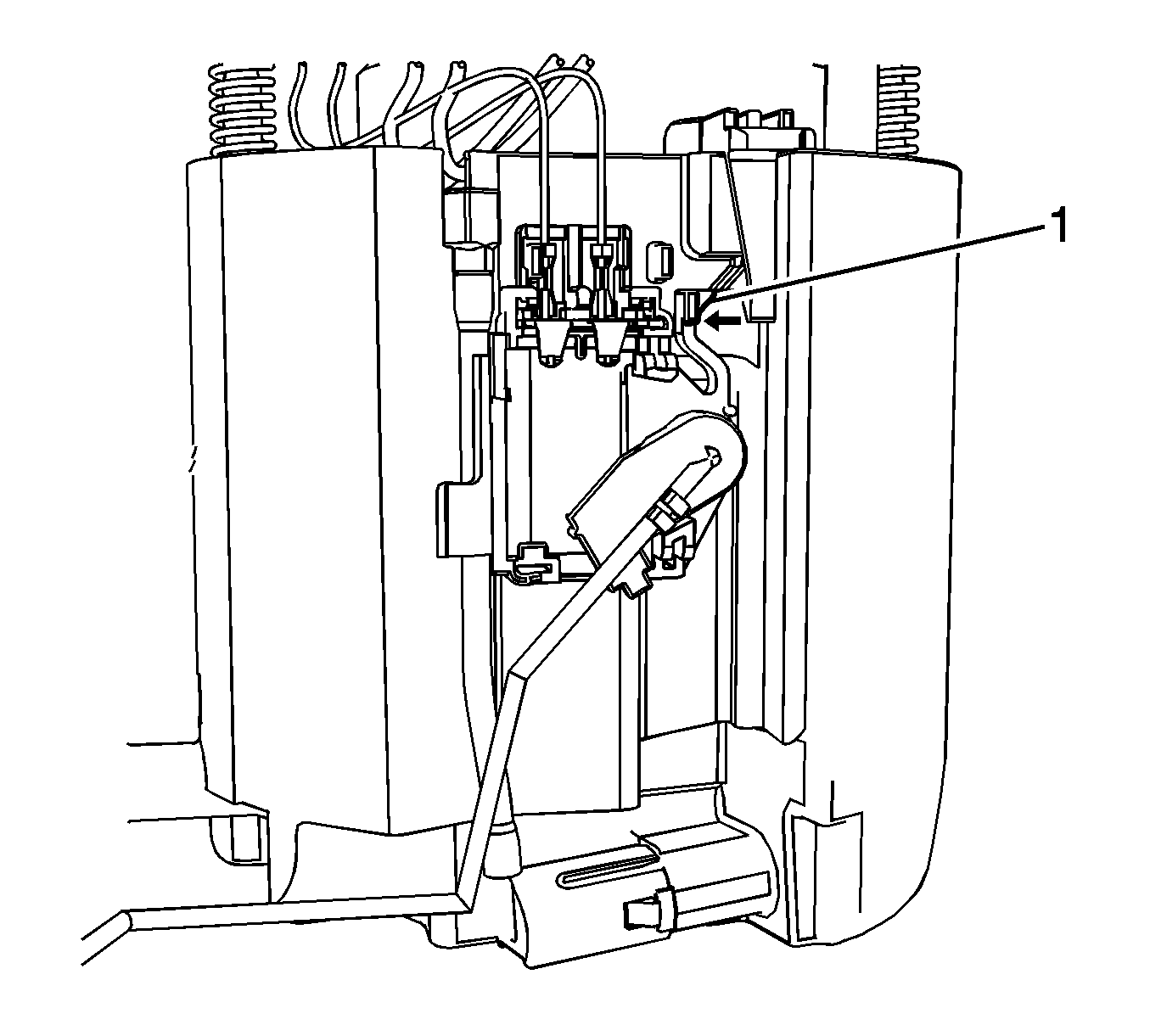

    4. Fig 3: Identifying Fuel Level Sensor Locking Tab
    GM2029133Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do not touch the resistor circuit board.

  4. Disengage the locking tab (1) on the fuel level sensor by pushing inward.

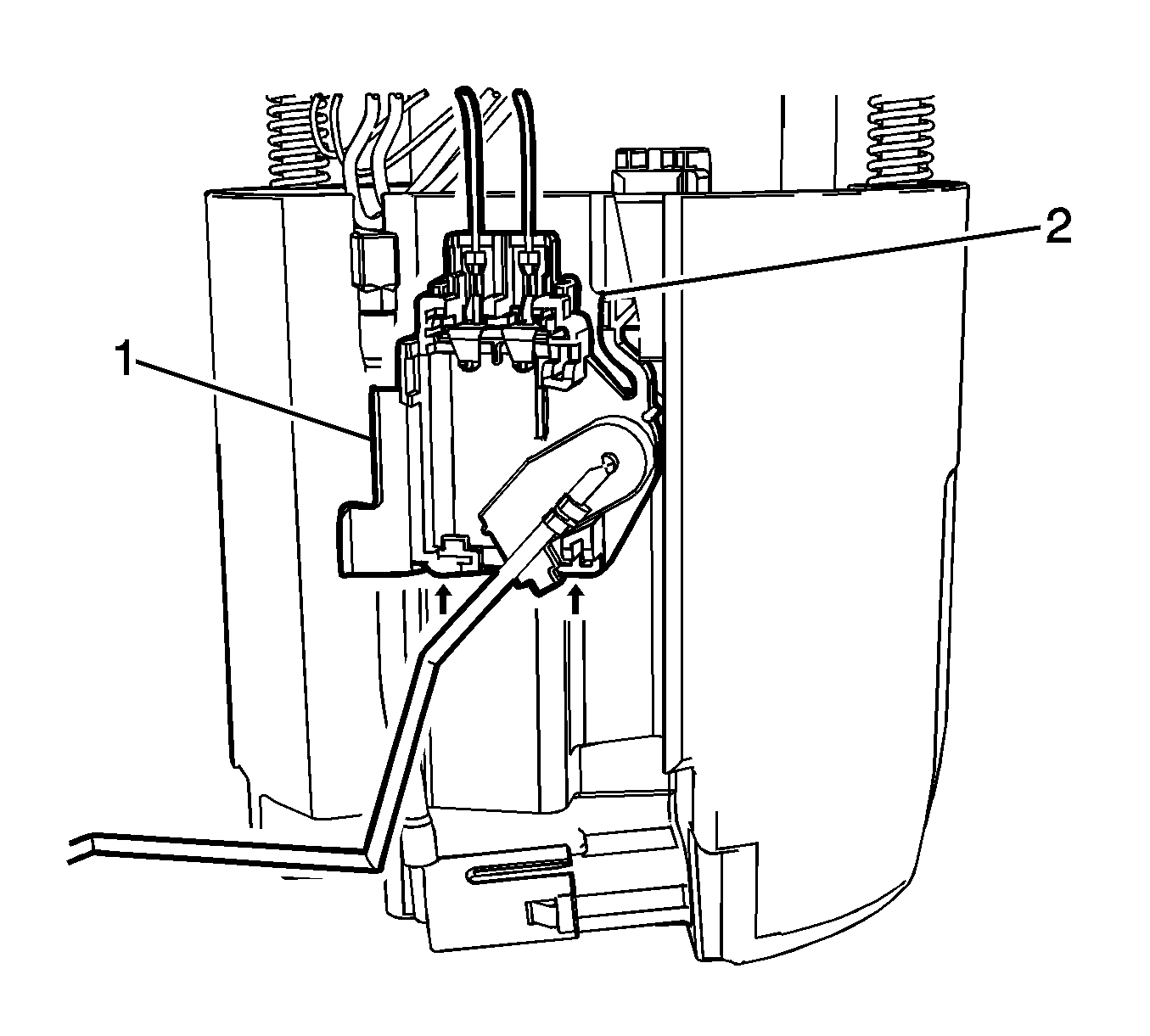

    5. Fig 4: Identifying Fuel Level Sensor & Stationary Lock
    GM2029159Courtesy of GENERAL MOTORS COMPANY
  5. Slide the fuel level sensor (1) upward to the stationary lock (2).
    6. Fig 5: Identifying Fuel Level Sensor
    GM2029178Courtesy of GENERAL MOTORS COMPANY
  6. Remove the fuel level sensor (1).
