Installation Procedure

  1. Carefully clean the throttle body mounting surfaces of any gasket and/or seal material.

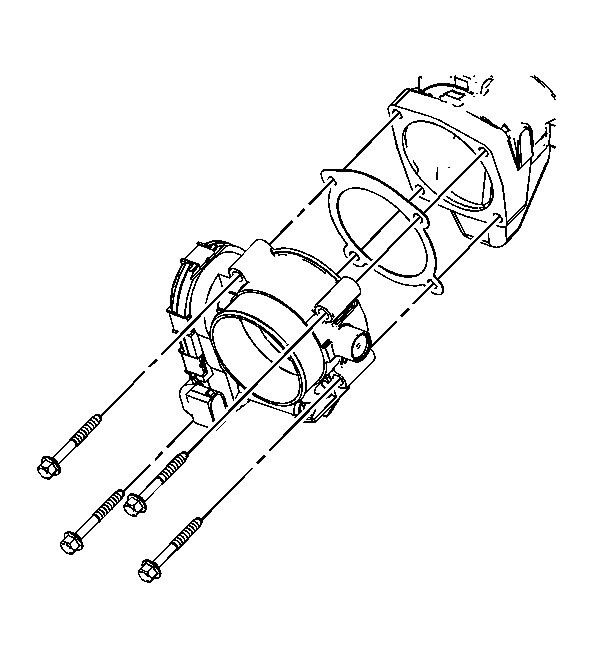

    2. Fig 1: View Of Throttle Body
    GM1285255Courtesy of GENERAL MOTORS COMPANY
  2. Install the throttle body and NEW gasket.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the throttle body bolts and tighten to 10 N.m (89 lb in).

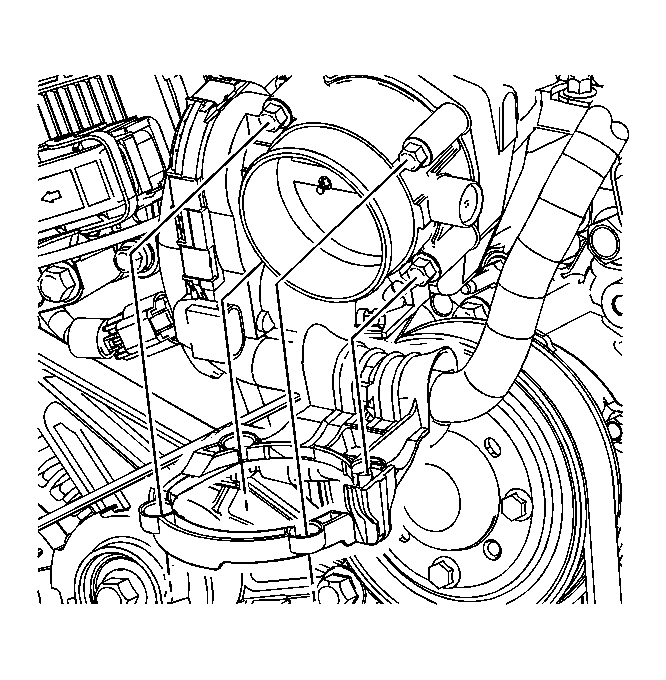

    4. Fig 2: View Of Wiring Harness Conduit
    GM1285256Courtesy of GENERAL MOTORS COMPANY
  4. Install the wiring harness conduit.

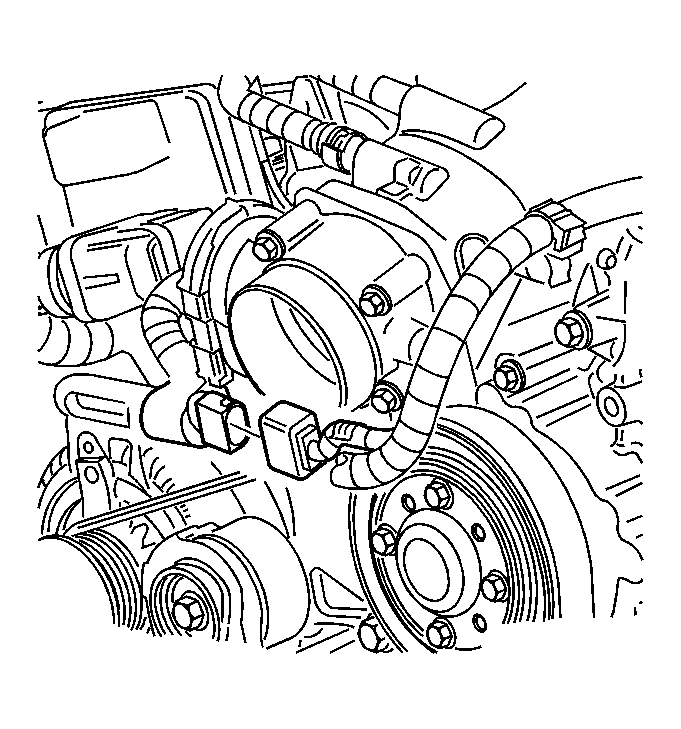

    5. Fig 3: View Of Throttle Body Electrical Connector
    GM945417Courtesy of GENERAL MOTORS COMPANY
  5. Install the throttle body electrical connector.
  6. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .
  7. Perform the throttle learn procedure. Refer to Throttle/Idle Learn .
  8. Use the scan tool to clear all DTCs.
