Installation Procedure

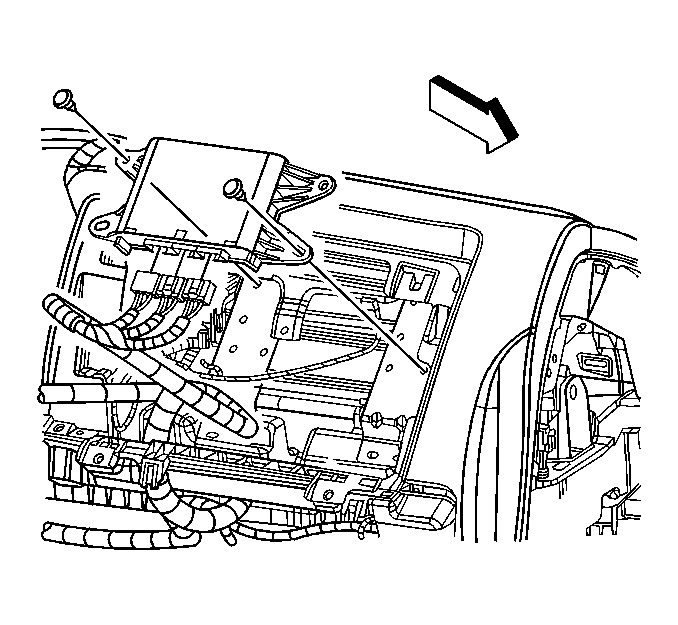

    Fig 1: View Of Dash Integration Module
    GM1466495Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connectors.
  2. Install the module to the bracket.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the screws that secure the module to the bracket and tighten to 2 N.m (18 lb in).
  4. Install the I/P compartment. Refer to Instrument Panel Compartment Replacement .
  5. Reprogram the module. Refer to Control Module References .
