RIM Power, Ground and DLC

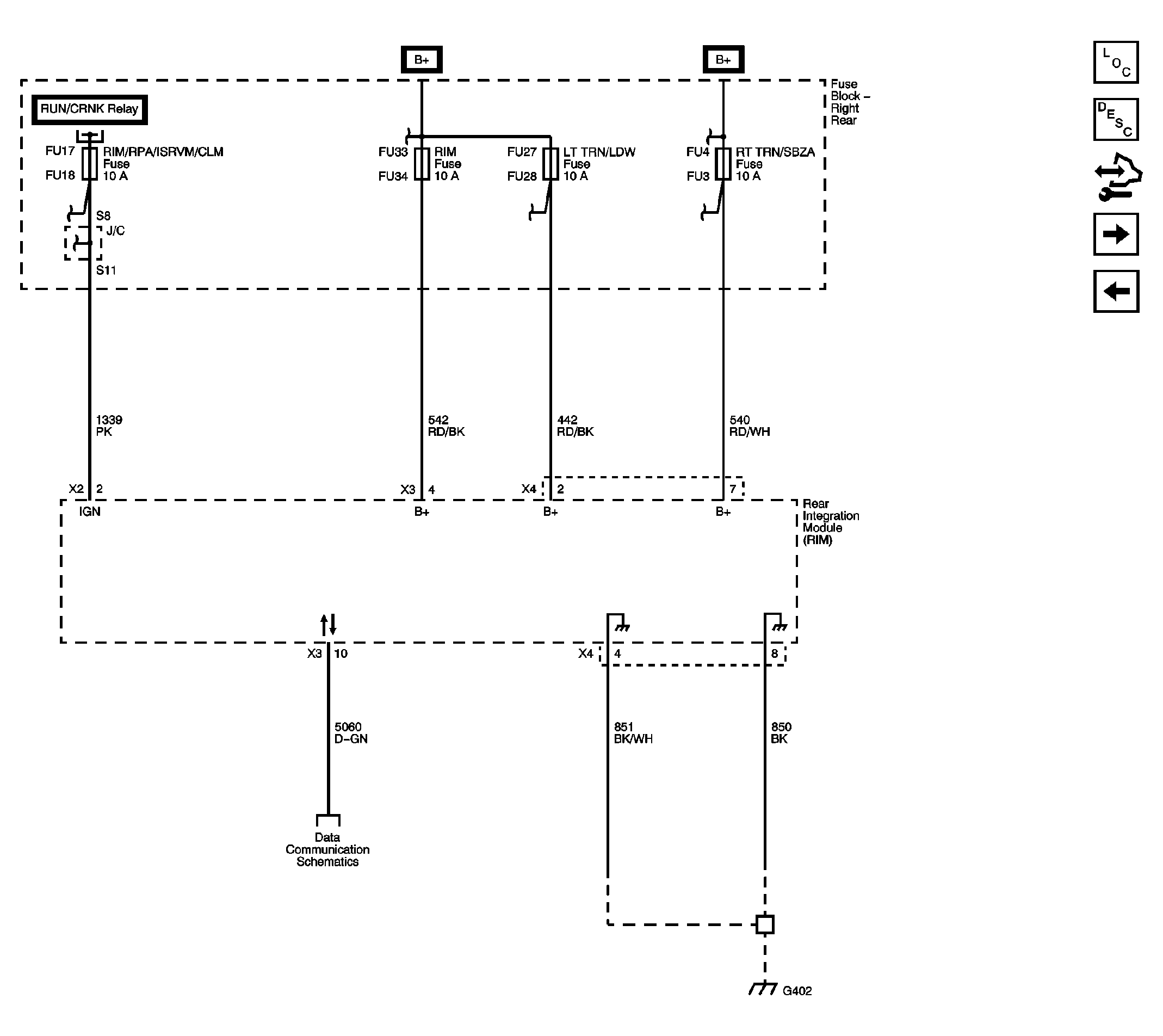

Fig 1: RIM Power, Ground and DLC Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
