Installation Procedure

NOTE:

During installation ensure that the child tether anchors are installed with the anti-rotation tabs firmly seated in the anti-rotation tab holes on the cross car beam.

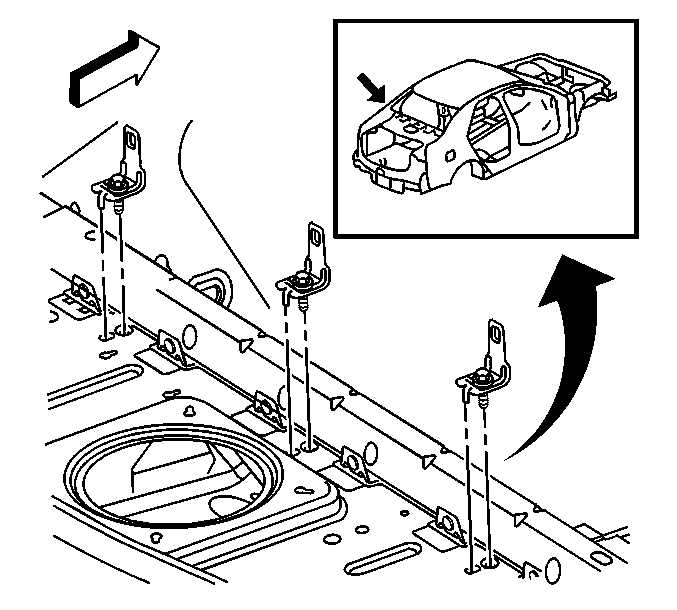

    Fig 1: Child Tether Anchor & Bolt
    GM729861Courtesy of GENERAL MOTORS COMPANY
  1. Install the child tether anchor to the cross car beam.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the child tether anchor bolt and tighten to 30 N.m (22 lb ft).
  3. Install the rear shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement .
