Installation Procedure

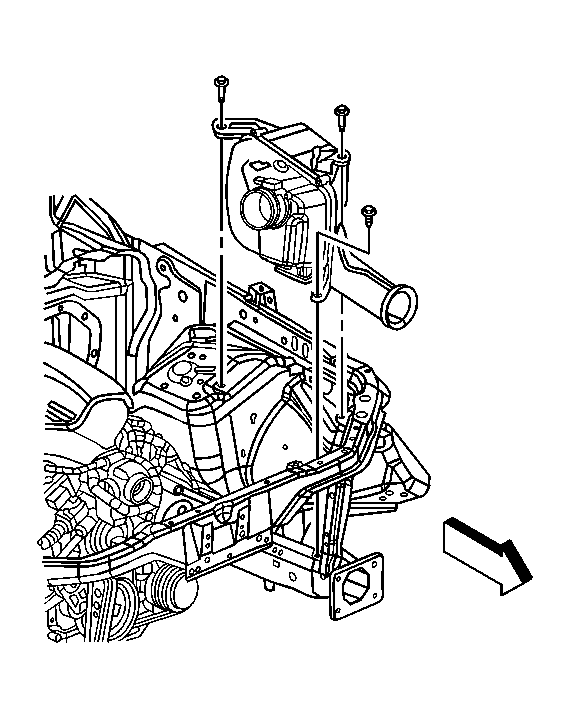

    Fig 1: View Of Air Cleaner Assembly
    GM1201221Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the air cleaner bolts and tighten to 9 N.m (78 lb in).
  3. Connect the MAF electrical connector.
  4. Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .
