Installation Procedure

    Fig 1: Identifying Crankshaft Position (CKP) Sensor
    GM1311144Courtesy of GENERAL MOTORS COMPANY
  1. If reinstalling the existing crank sensor, inspect the O-ring for damage and replace as necessary.
  2. Install the crankshaft position sensor (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the crankshaft position sensor fastener (1) and tighten to 10 N.m (89 lb in).
    4. Fig 2: Locating CKP Electrical Connector
    GM887868Courtesy of GENERAL MOTORS COMPANY
  4. Connect the CKP electrical connector (3).
  5. Install the crankshaft position sensor wiring harness fastener (1) and tighten to 10 N.m (89 lb in).

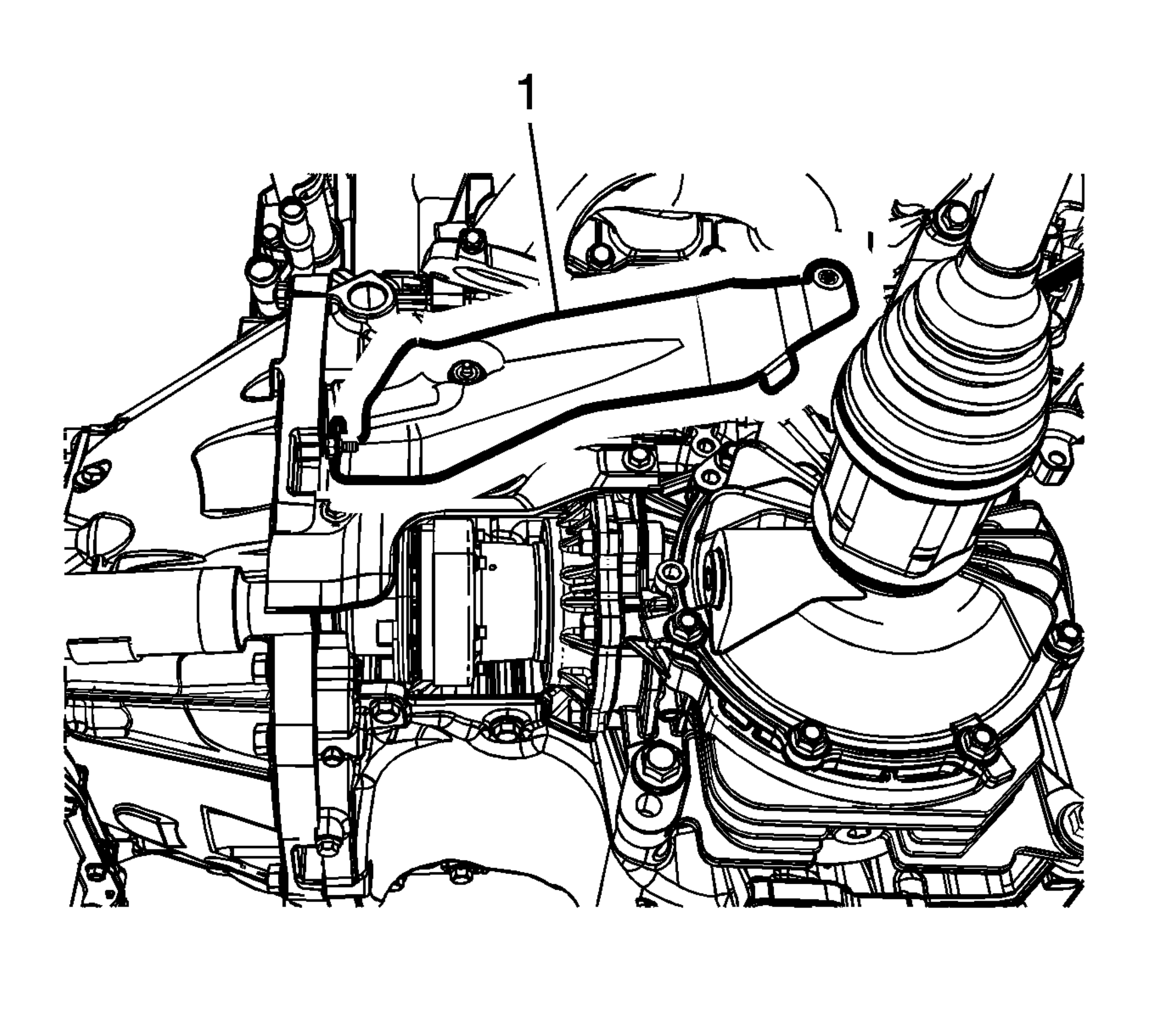

    6. Fig 3: Crank Sensor Heat Shield
    GM2743765Courtesy of GENERAL MOTORS COMPANY
  6. Install the crank sensor heat shield (1) to the retaining pins.
  7. Install the catalytic converter. Refer to Catalytic Converter Replacement - Right Side .

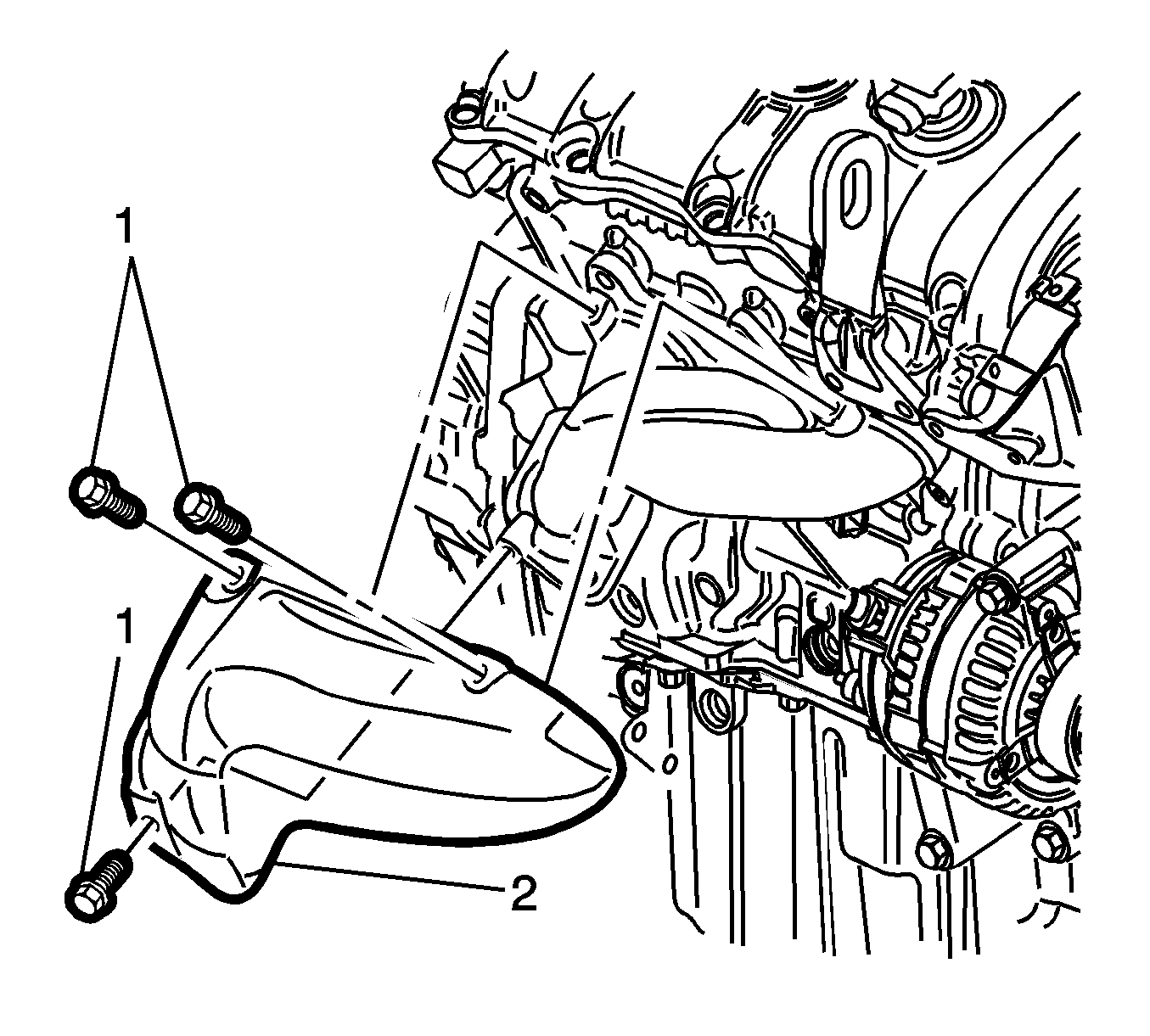

    8. Fig 4: View Of Right Exhaust Manifold Heat Shield
    GM945964Courtesy of GENERAL MOTORS COMPANY
  8. Install the exhaust manifold heat shield (2) and fasteners (1) and tighten to 10 N.m (89 lb in).
  9. Lower the vehicle.
