RIM Inputs and Outputs

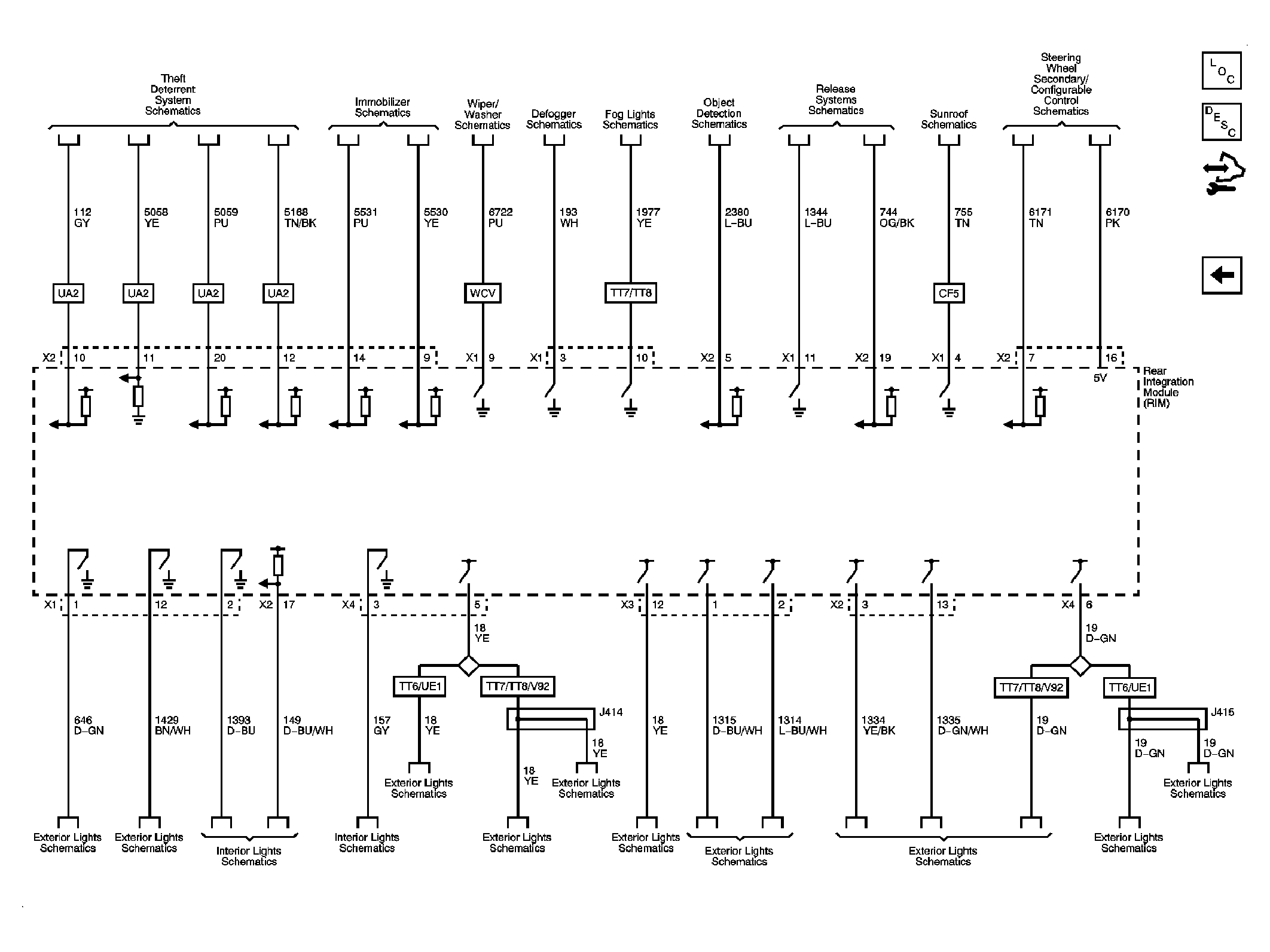

Fig 1: RIM Inputs and Outputs Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
