Accessory and Liftgate Control Module Replacement

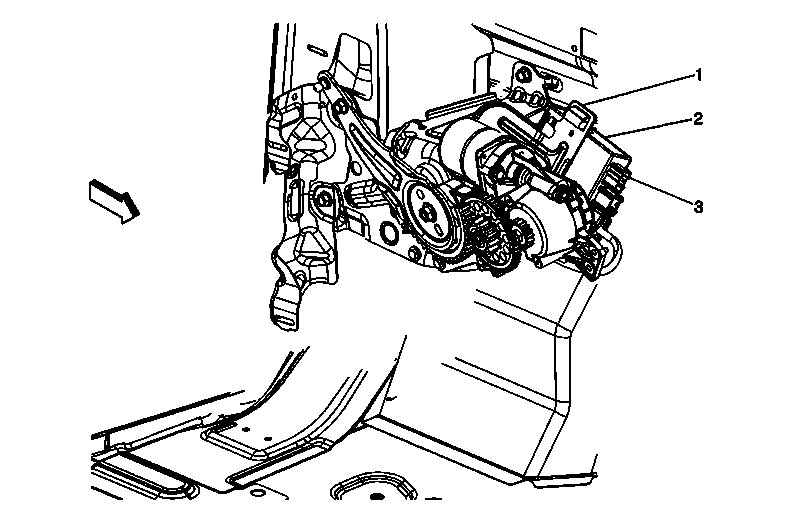

Fig 1: Power Liftgate Actuator Module & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the body side trim panel. Refer to Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/o E61) , Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/o E61) .
1	Power Liftgate Actuator Module Retainer Procedure Press the retainer to release.
2	Power Liftgate Actuator Module
3	Electrical Connector Procedure Disconnect the electrical connector. If a replacement control module is installed, program the replacement module. Refer to Liftgate Control Module Programming and Setup .
