Engine Shield Replacement

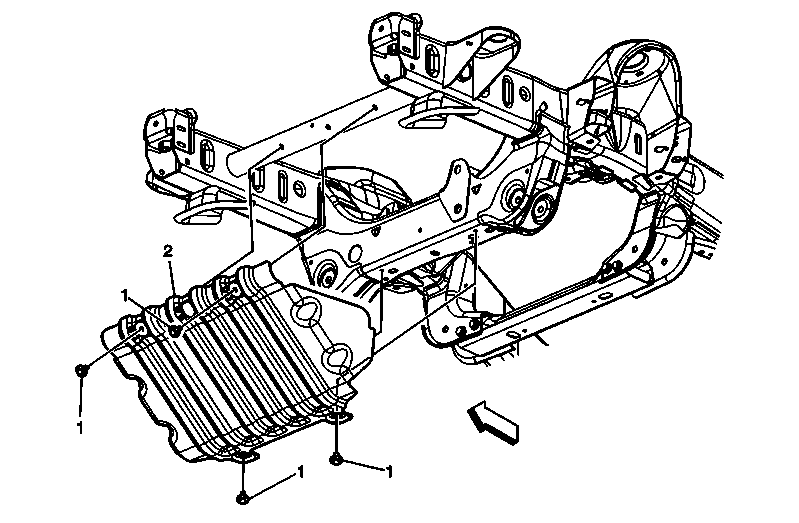

Fig 1: View Of Engine Shield & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1	Engine Shield Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
2	Engine Shield
