Power Mirror Replacement

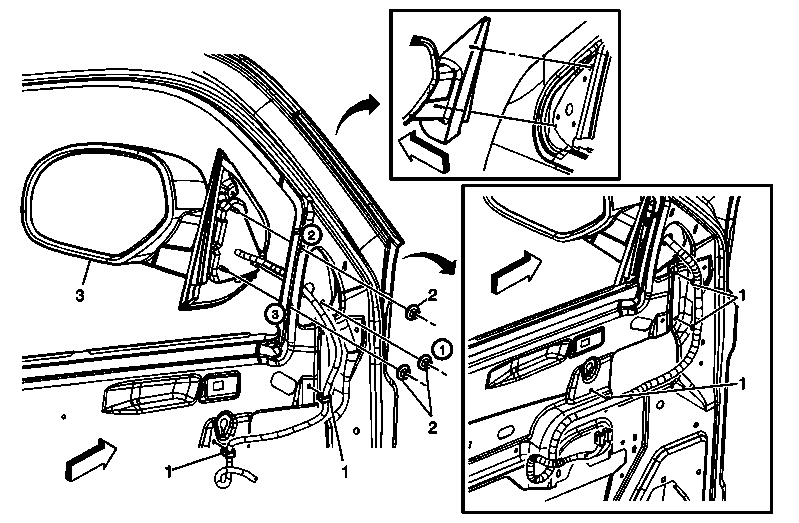

Fig 1: View Of Outside Power Mirror & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Outside Power Mirror Wiring Retainer Clip (Qty: 3) Procedure Remove the foam sound deadening material to expose the mirror nuts.
2	Outside Power Mirror Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten the mirror nuts in the sequence shown (1-3). Tighten 9 (80 lb in)
3	Outside Power Mirror
