Installation Procedure

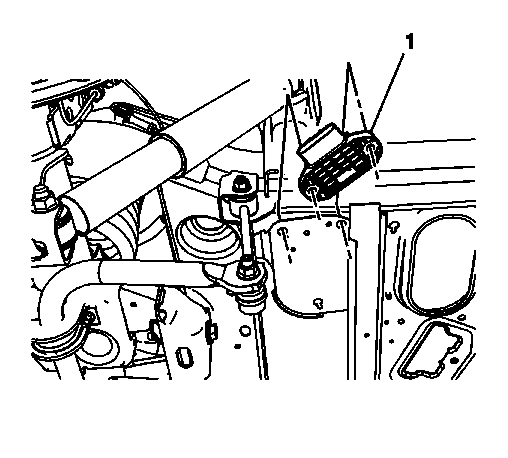

    Fig 1: Trailer Brake Control Relay
    GM2275182Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connector and install the trailer brake control relay (1).

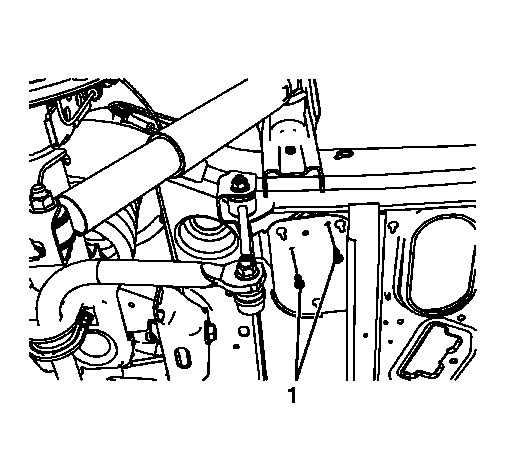

    2. Fig 2: Trailer Brake Control Relay Bolts
    GM2275179Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the trailer brake control relay bolts (1) and tighten to 6 N.m (53 lb in).

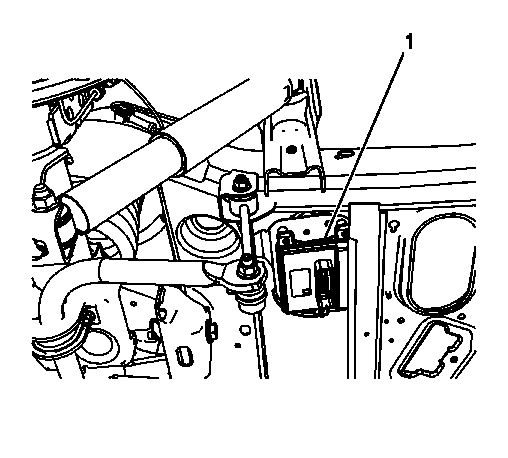

    3. Fig 3: Identifying Fuel Pump Flow Control Module
    GM2275178Courtesy of GENERAL MOTORS COMPANY
  3. Install the fuel pump flow control module (1). Refer to Fuel Pump Flow Control Module Replacement .
  4. Install the spare tire and wheel assembly. Refer to Spare Wheel Hoist Replacement .
