Trailer Brake Control Switch Replacement

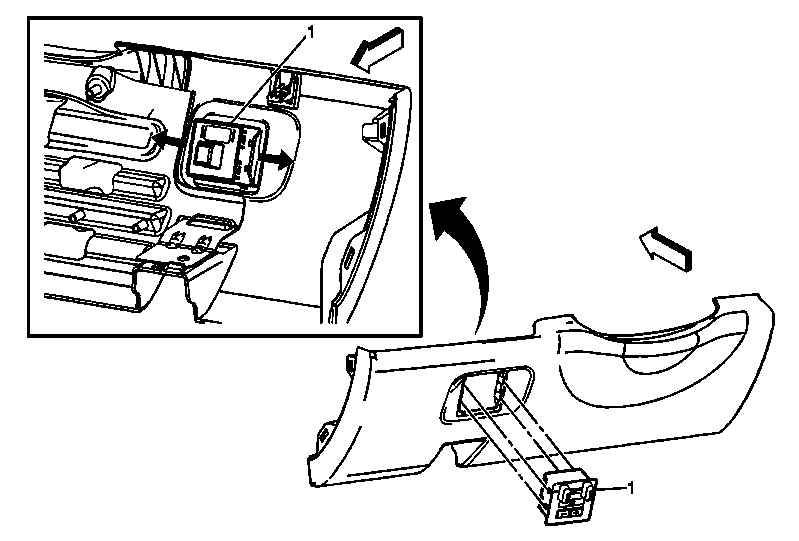

Fig 1: View Of Trailer Brake Control Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the knee bolster. Refer to Knee Bolster Replacement (Except Cadillac) , Knee Bolster Replacement (Cadillac)
1	Trailer Brake Control Switch Procedure Disconnect the electrical connectors. Use a plastic flat bladed tool to release the switch from the knee bolster trim.

Callout

Component Name

Trailer Brake Control Switch

Procedure

Disconnect the electrical connectors.
Use a plastic flat bladed tool to release the switch from the knee bolster trim.
