Auxiliary Battery Tray Replacement

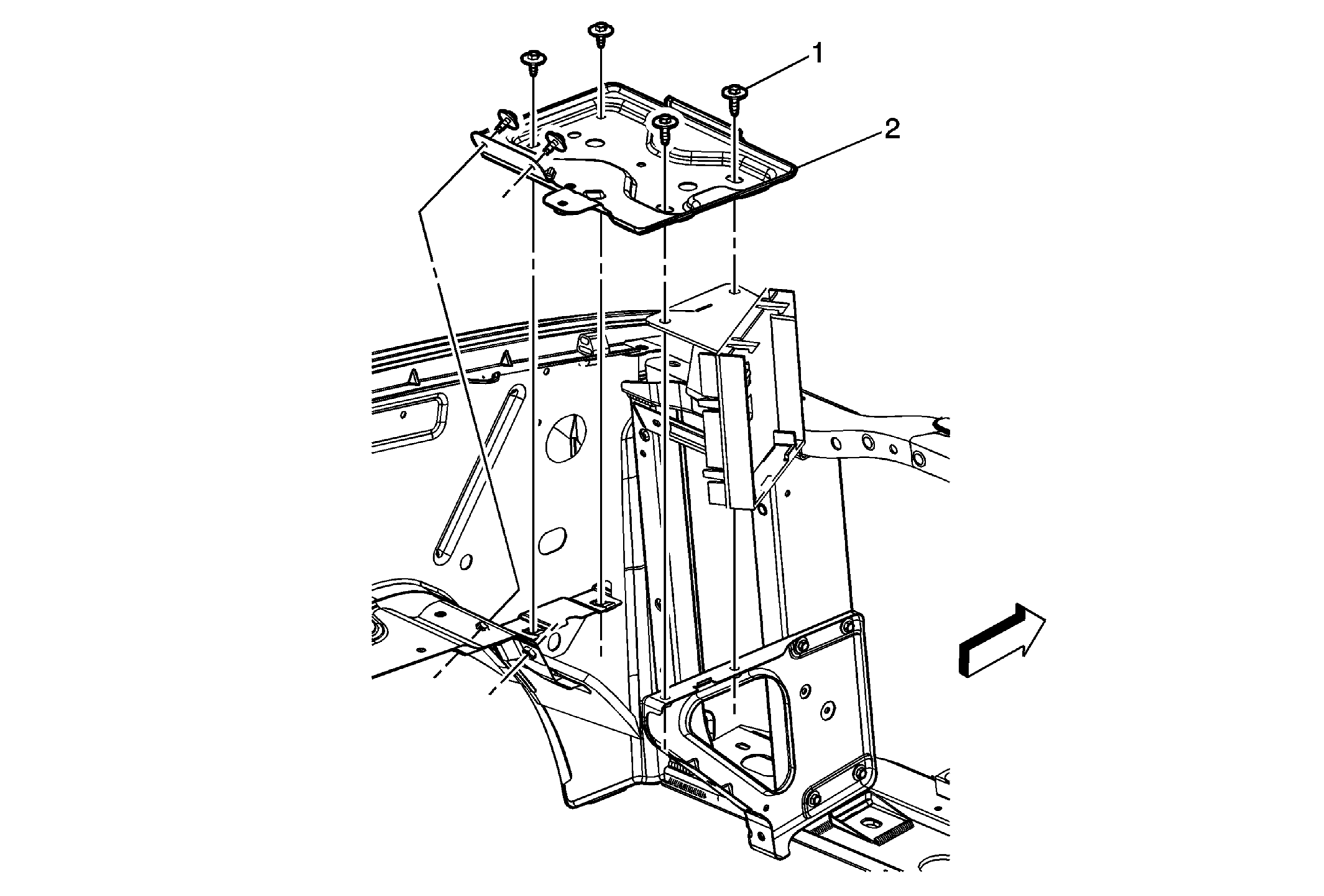

Fig 1: Auxiliary Battery Tray Replacement (6.2L, and 6.6L)
GM1834735Courtesy of GENERAL MOTORS COMPANY
Auxiliary Battery Tray Replacement

Callout Component Name
1 Auxiliary Battery Tray Bolt (Qty: 6)
CAUTION:

Refer to Fastener Caution .


TIP:  Note the length of bolts when removing for proper reinstallation. The auxiliary battery tray bolts vary in length.
Tighten
9 N.m (80 lb in)
2 Auxiliary Battery Tray
