Installation Procedure

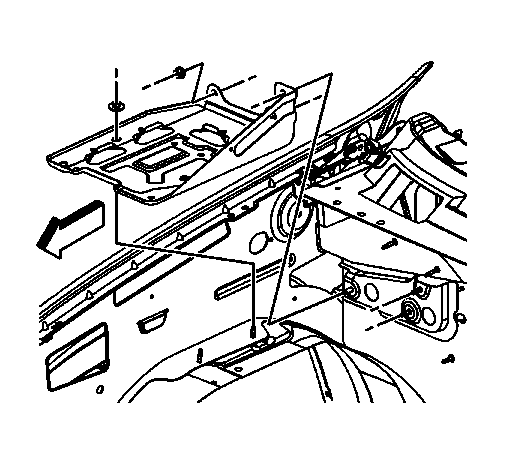

    Fig 1: View Of Battery Tray, Brackets & Nuts
    GM1702822Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery tray to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 3 nuts securing the battery tray to the battery tray bracket.

    Tighten

    Tighten the nuts to 20 N.m (15 lb ft).

  3. Install the nut securing the battery tray to the front fender inner panel.

    Tighten

    Tighten the nut to 9 N.m (80 lb in).

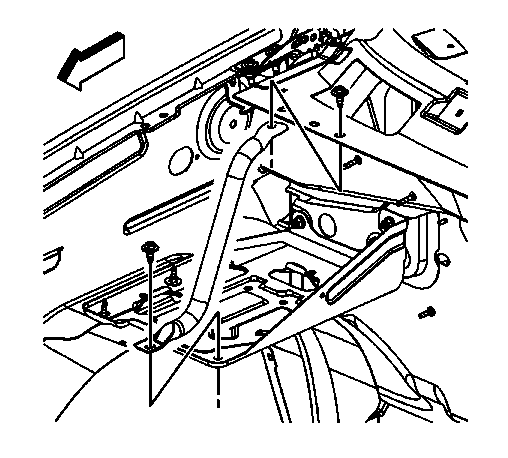

    4. Fig 2: View Of Battery Tray Front Support & Bolts
    GM1702819Courtesy of GENERAL MOTORS COMPANY
  4. Install the battery tray front support.
  5. Install the battery tray front support bolts.

    Tighten

    Tighten the bolts to 20 N.m (15 lb ft).

  6. Install the battery. Refer to Battery Replacement .
