Removal Procedure

    Fig 1: View Of Engine Ground Strap & Bolt
    GM1702850Courtesy of GENERAL MOTORS COMPANY
  1. Remove the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
  2. Remove the engine ground strap nut at the front plenum panel.
  3. Remove the ground strap terminal from the stud.

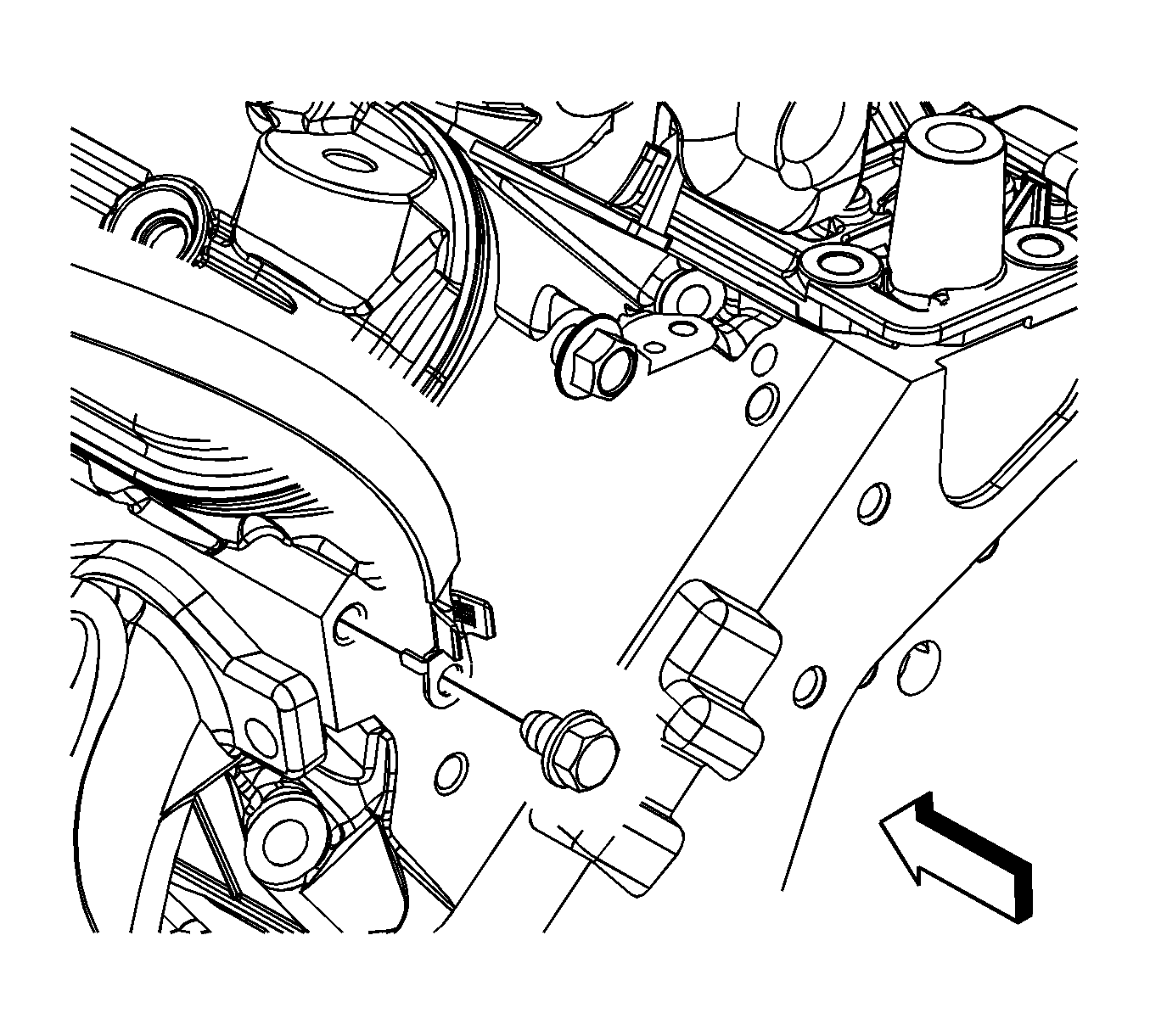

    4. Fig 2: View Of Engine Ground Strap & Bolt
    GM1699550Courtesy of GENERAL MOTORS COMPANY
  4. Remove the engine ground strap bolt from the rear of the left cylinder head.
  5. Remove the ground strap from the vehicle.
