Installation Procedure

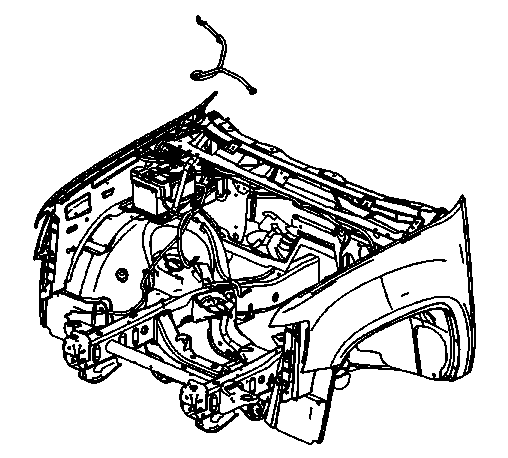

    Fig 1: View Of Generator Battery Jumper Cable
    GM1702992Courtesy of GENERAL MOTORS COMPANY
  1. Install the generator battery jumper cable to the vehicle.
    2. Fig 2: View Of Generator Battery Jumper Cable & Components
    GM1699546Courtesy of GENERAL MOTORS COMPANY
  2. Install the generator battery jumper cable terminal (4) to the mega fuse stud.
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the generator battery jumper cable to the mega fuse nut (3).

    Tighten

    Tighten the mega fuse nut to 9 N.m (80 lb in).

  4. Install the generator battery jumper cable clip (2) to the A/C evaporator tube.
  5. Install the generator battery jumper cable clip (1) to the stud.
    6. Fig 3: View Of Mega Fuse Cover
    GM1702800Courtesy of GENERAL MOTORS COMPANY
  6. Install the mega fuse cover.
    7. Fig 4: View Of Battery Jumper Cable Terminal, Nut & Bolt
    GM1702914Courtesy of GENERAL MOTORS COMPANY
  7. Install the generator battery jumper cable terminal (1) to the generator stud.
  8. Install the generator battery jumper cable nut (2) to the generator.

    Tighten

    Tighten the jumper cable nut to 9 N.m (80 lb in).

  9. Position the generator battery jumper cable boot (3).
  10. Install the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  11. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
