Installation Procedure

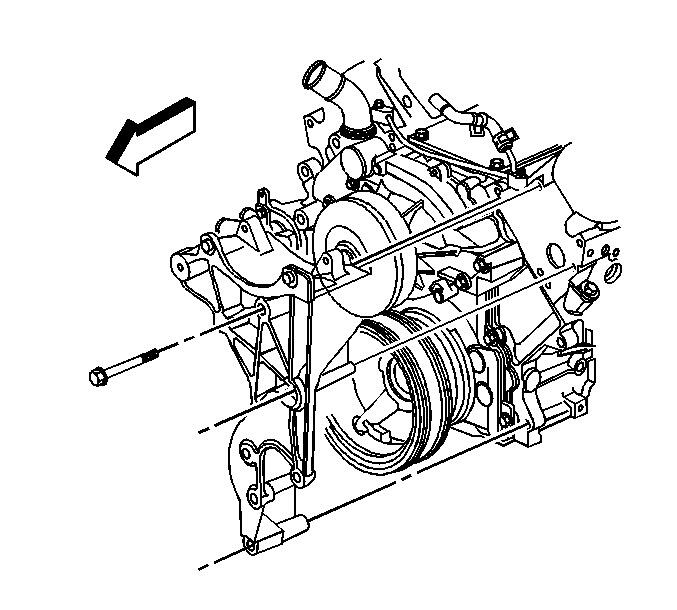

    Fig 1: View Of Generator Bracket & Bolts (4.8L, 5.3L & 6.0L)
    GM847280Courtesy of GENERAL MOTORS COMPANY
  1. Position the generator bracket to the engine.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the generator bracket bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

    3. Fig 2: View Of Engine Wiring Harness, Clip, Bolt & Connector
    GM1696914Courtesy of GENERAL MOTORS COMPANY
  3. Position the engine wiring harness clip (1) to the generator bracket and install the engine harness clip bolt (3).

    Tighten

    Tighten the bolt to 9 N.m (80 lb in).

  4. Install the power steering pump. Refer to Power Steering Pump Replacement (4.8L, 5.3L, 6.0L, and 6.2L) .
  5. Install the generator. Refer to Generator Replacement .
