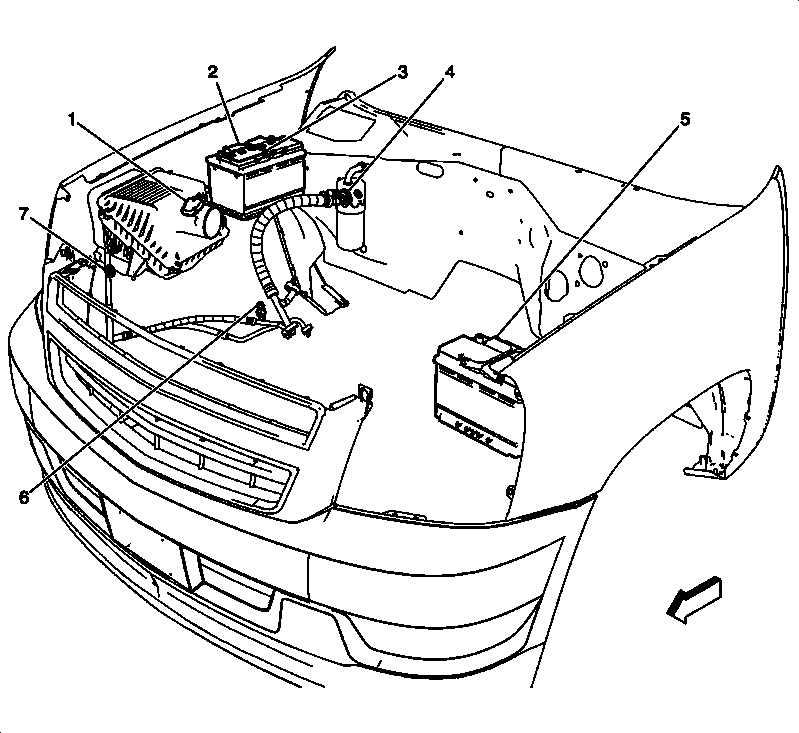

Engine Compartment Components
Engine Compartment Components
| Component Name |
Callout |
| Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor |
1 |
| Battery (except HP2) |
2 |
| Fuse Holder (except HP2) |
3 |
| A/C Low Pressure Sensor (HP2) |
4 |
| Battery (HP2) |
5 |
| A/C Refrigerant Pressure Sensor (except HP2) |
6 |
| A/C Refrigerant Pressure Sensor (HP2) |
7 |
Courtesy of GENERAL MOTORS COMPANY
