Left Side of Engine Compartment Components

Left Side of Engine Compartment Components

Component Name Callout
Windshield Wiper Motor 1
Fuse Block- Underhood 2
Engine Control Module (ECM) 3
Brake Fluid Level Switch 4
Brake Booster Vacuum Sensor (JD9) 5

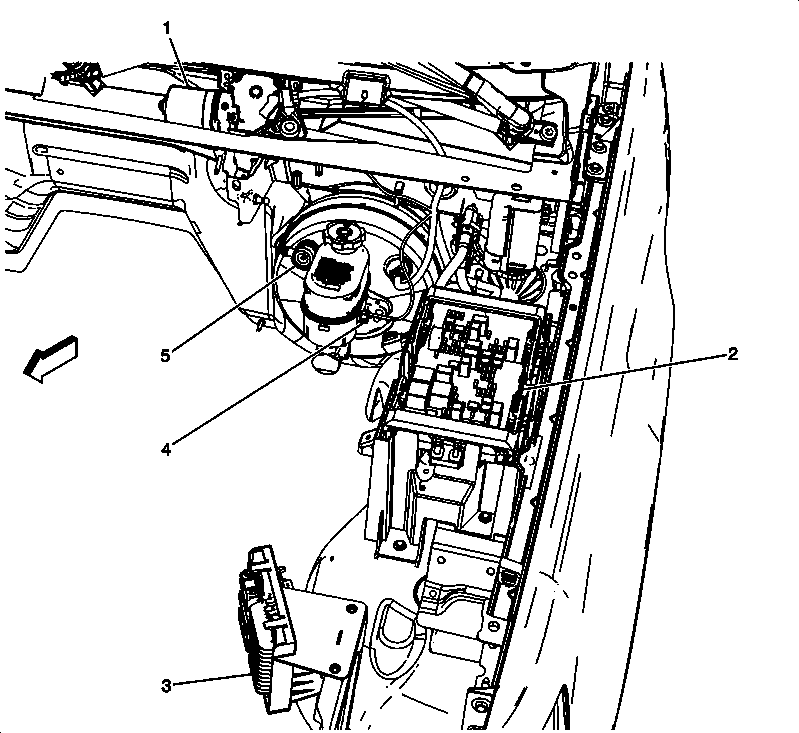

Fig 1: Left Side of Engine Compartment Components
GM2360236Courtesy of GENERAL MOTORS COMPANY
