Chassis Component Grounds

Chassis Component Grounds

Component Name Callout
G400 1
G305 (EXP or HP2) 2
G300 3

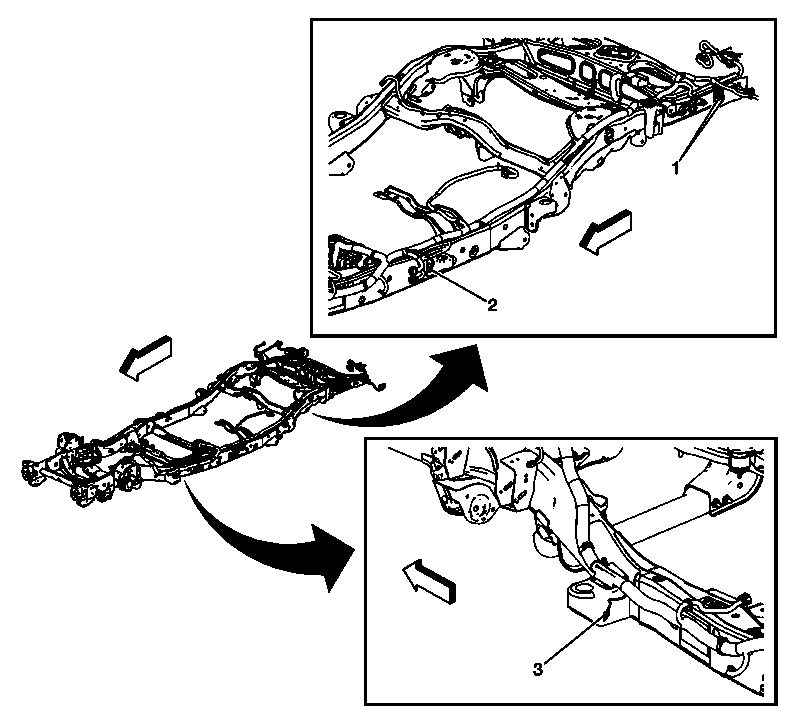

Fig 1: Chassis Component Grounds (Utility)
GM2077168Courtesy of GENERAL MOTORS COMPANY
