HVAC Module Components
HVAC Module Components
Component Name
Callout
Mode Actuator
1
Air Temperature Actuator - Right
2
Recirculation Actuator
3
Air Temperature Sensor - Lower Right (CJ2)
4
Air Temperature Actuator - Left
5
Blower Motor Control Module
6
Blower Motor
7
Air Temperature Sensor - Lower Left (CJ2)
8

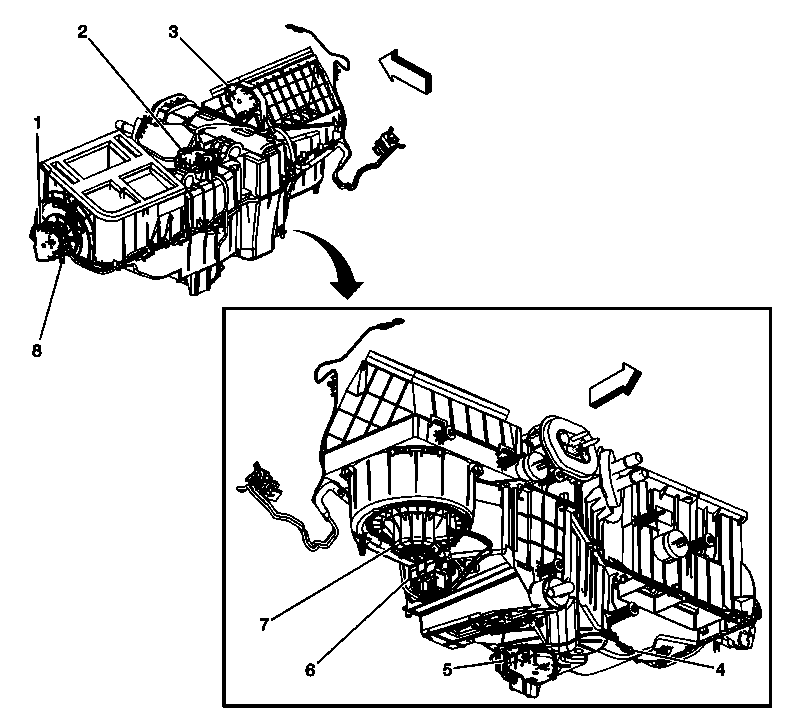

Fig 1: HVAC Module Components
Courtesy of GENERAL MOTORS COMPANY
