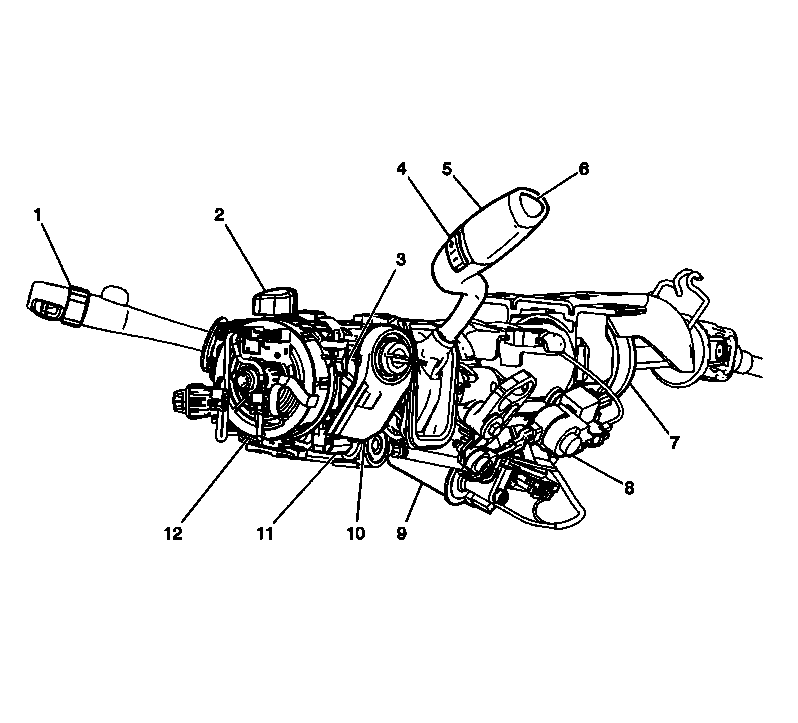

Steering Column Components
Steering Column Components
| Component Name | Callout |
|---|---|
| Turn Signal/Multifunction Switch | 1 |
| Hazard Switch | 2 |
| Ignition Lock Cylinder | 3 |
| Automatic Transmission Manual Shift Switch (MYC, MYD or M99) | 4 |
| Automatic Transmission Shift Lever | 5 |
| Tow/Haul Switch (MYC or MYD) | 6 |
| Steering Angle Sensor (JL4) | 7 |
| Automatic Transmission Shift Lock Control Solenoid | 8 |
| Tilt Wheel Actuator | 9 |
| Theft Deterrent Module (TDM) | 10 |
| Ignition Switch | 11 |
| Inflatable Restraint Steering Wheel Module Coil | 12 |
