Steering Wheel Components

Steering Wheel Components

Component Name Callout
Horn Switch 1
Heated Steering Wheel (KA9) 2
Heated Steering Wheel Control Module (KA9) 3
Steering Wheel Control Switch - Right (UK3) 4
Horn Switch 5
Steering Wheel Control Switch - Left (K34 or KA9) 6

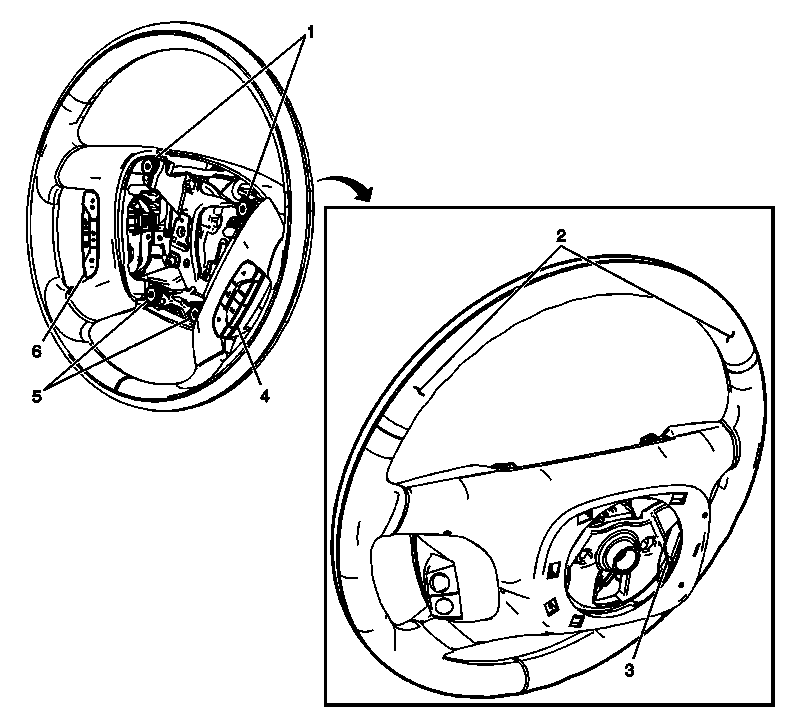

Fig 1: Steering Wheel Components
GM2047972Courtesy of GENERAL MOTORS COMPANY
