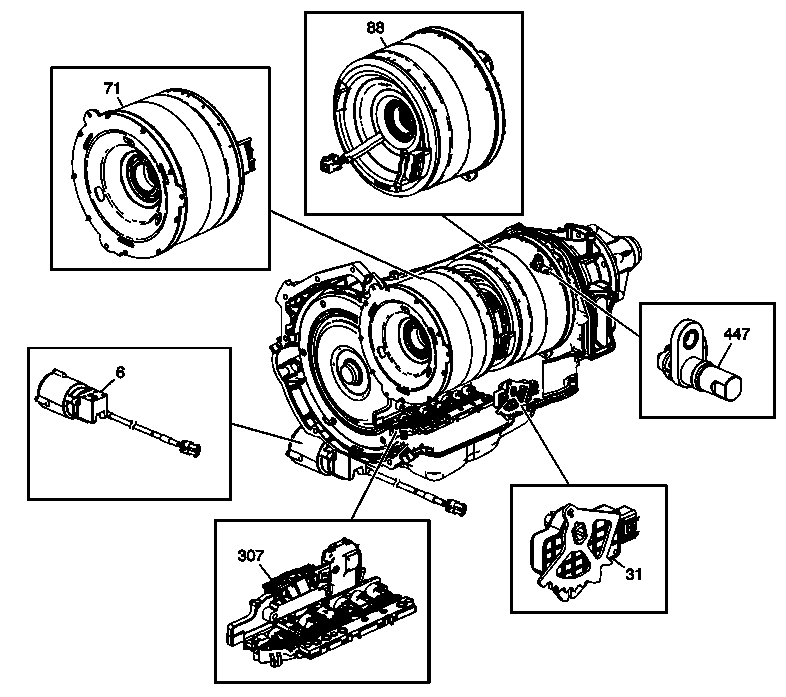

Automatic Transmission Internal Components (M99)
Automatic Transmission Internal Components (M99)
| Component Name | Callout |
|---|---|
| Automatic Transmission Auxiliary Fluid Pump | 6 |
| Automatic Transmission Internal Mode Switch (IMS) | 31 |
| Drive Motor with Generator Assembly - 1st Position | 71 |
| Drive Motor with Generator Assembly - 2nd Position | 88 |
| Control Solenoid Valve Assembly | 307 |
| Automatic Transmission Output Shaft Speed (OSS) Sensor | 447 |
