Front and Left Side of Engine Components (except LZ1)
Front and Left Side of Engine Components (except LZ1)

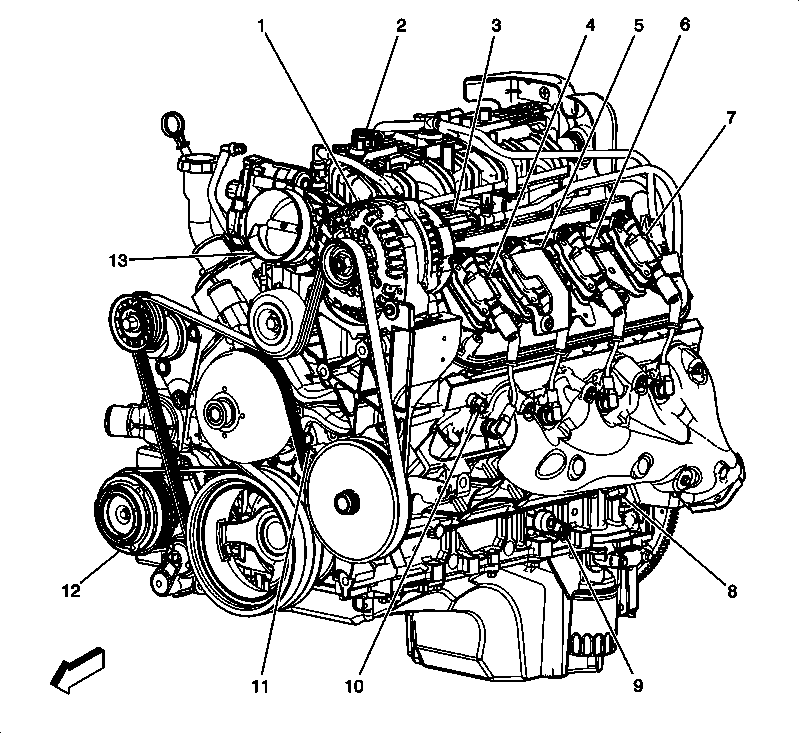

| Component Name | Callout |
|---|---|
| Generator | 1 |
| Manifold Absolute Pressure (MAP) Sensor | 2 |
| Evaporative Emissions (EVAP) Canister Purge Solenoid Valve | 3 |
| Ignition Coil 1 | 4 |
| Ignition Coil 3 | 5 |
| Ignition Coil 5 | 6 |
| Ignition Coil 7 | 7 |
| Engine Block Heater Connector (K05) | 8 |
| Knock Sensor (KS) 1 | 9 |
| Engine Coolant Temperature (ECT) Sensor | 10 |
| Camshaft Position (CMP) Sensor | 11 |
| A/C Compressor Clutch | 12 |
| Throttle Body | 13 |
