Air Cleaner Element Replacement

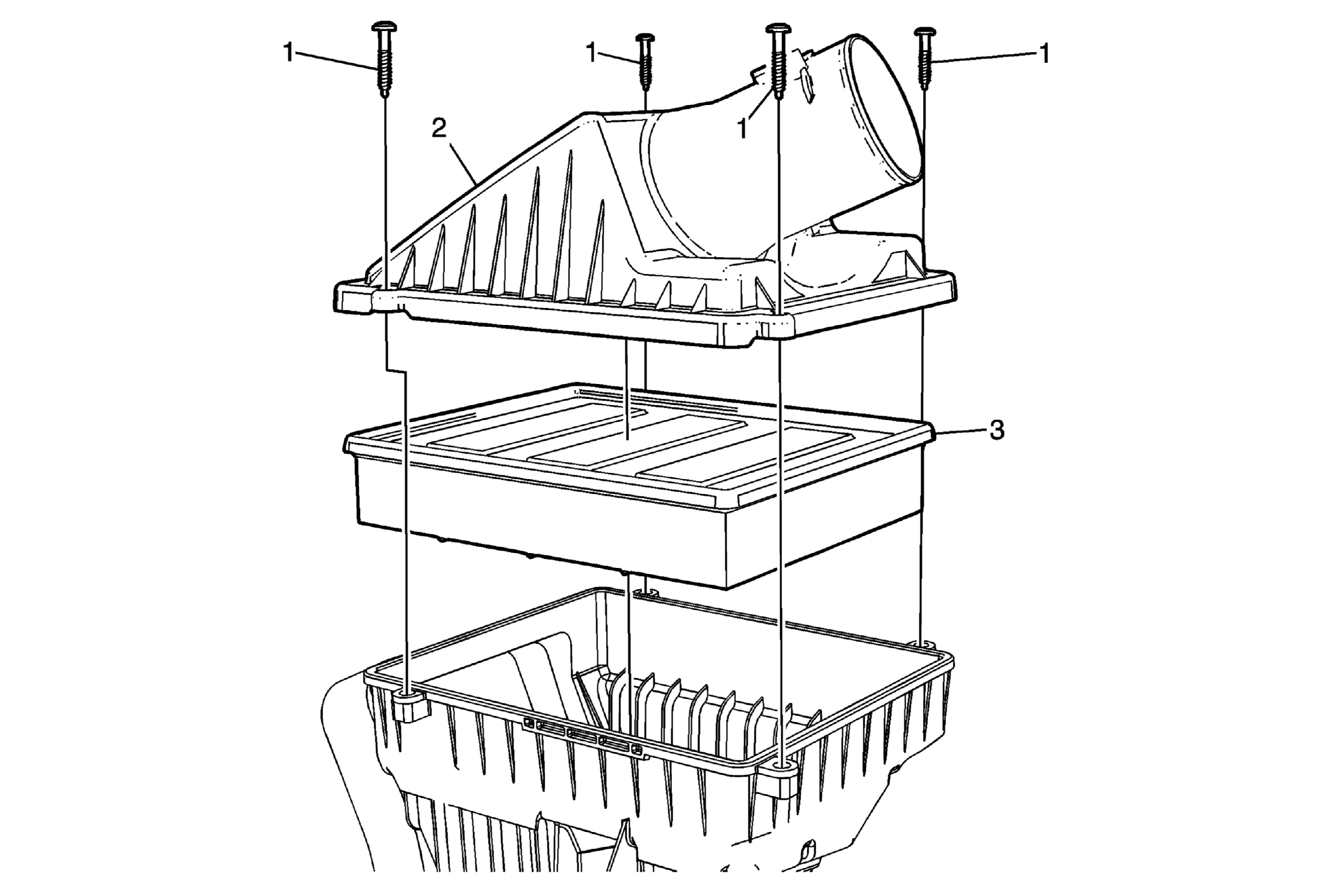

Fig 1: View Of Air Cleaner Element
GM2074781Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Element Replacement

Callout Component Name
1 Air Cleaner Housing Cover Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
3 N.m (27 lb in)
2 Air Cleaner Housing
3 Air Cleaner Element
