Installation Procedure

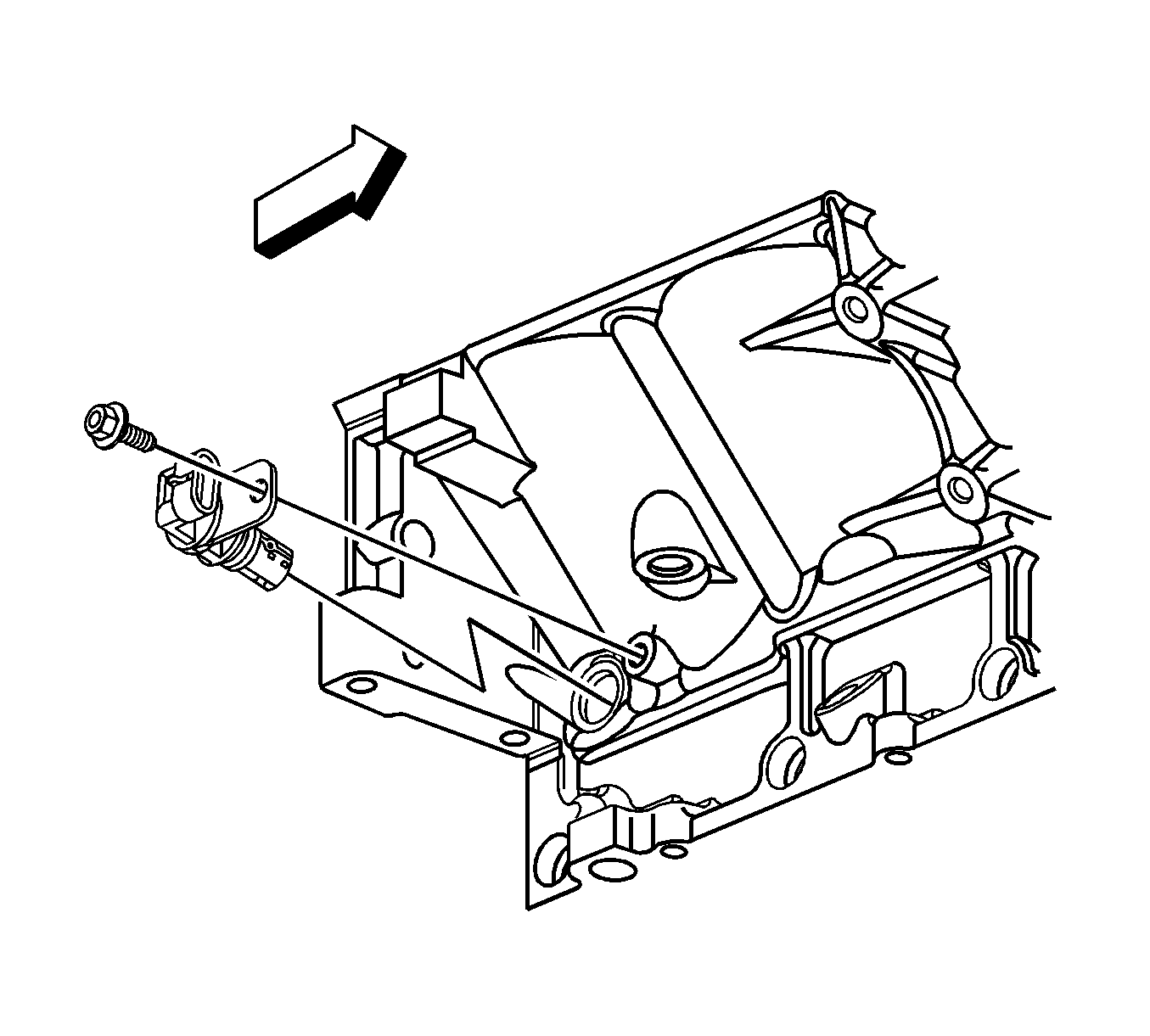

    Fig 1: CKP Sensor & Bolt
    GM1239292Courtesy of GENERAL MOTORS COMPANY
  1. Install the CKP sensor.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the CKP sensor bolt.

    Tighten

    Tighten the bolt to 25 N.m (18 lb ft).

    3. Fig 2: View Of Engine Wiring Harness Electrical Connector & Components
    GM1698087Courtesy of GENERAL MOTORS COMPANY
  3. Connect the engine wiring harness electrical connector (1) to the CKP sensor.
  4. Install the starter. Refer to Starter Replacement .
  5. Perform the CKP system variation learn procedure. Refer to Crankshaft Position System Variation Learn .
