Fuel Pump Flow Control Module Replacement

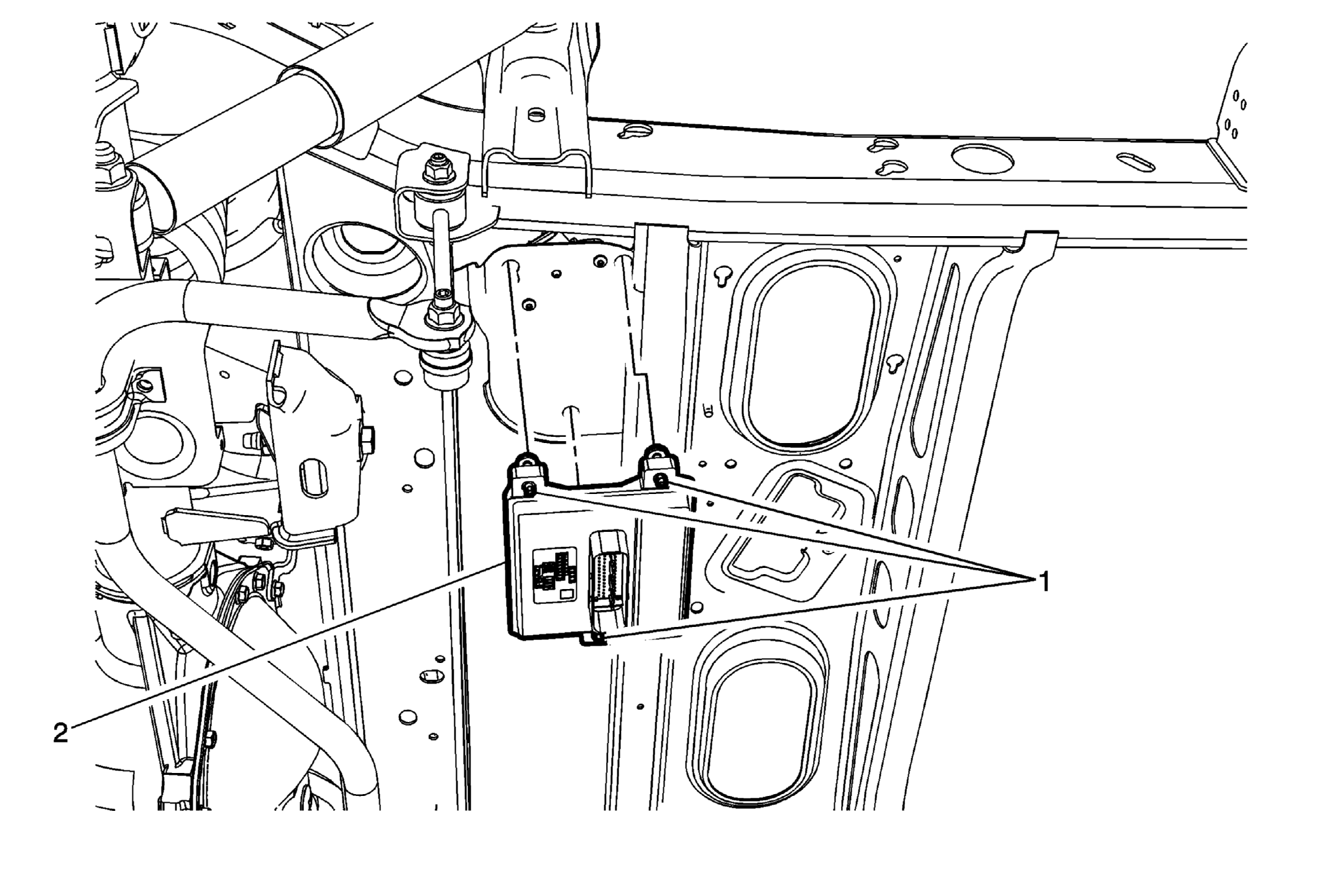

Fig 1: Fuel Pump Flow Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the spare tire. Refer to Spare Wheel Hoist Replacement .
1	Fuel Pump Flow Control Module Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Partially loosen the fasteners from the slotted bracket. Tighten 6 N.m(53 lb in)
2	Fuel Pump Flow Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the spare tire. Refer to Spare Wheel Hoist Replacement .

Fuel Pump Flow Control Module Fastener (Qty: 3)

CAUTION:

Procedure
Partially loosen the fasteners from the slotted bracket.
Tighten
6 N.m(53 lb in)

Fuel Pump Flow Control Module

Procedure
