Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

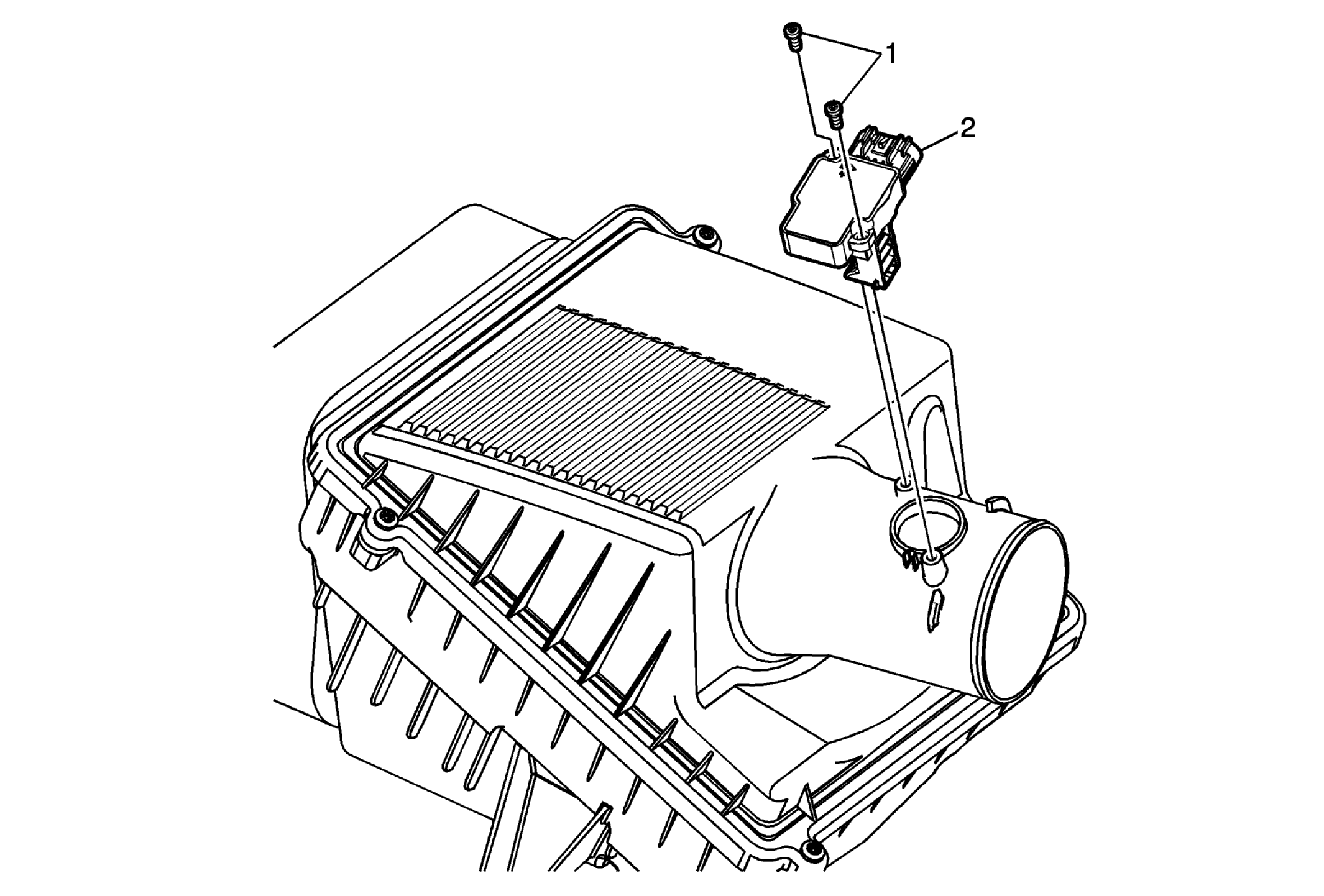

Fig 1: Mass Airflow Sensor With Intake Air Temperature Sensor
GM1938503Courtesy of GENERAL MOTORS COMPANY
Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

Callout Component Name
1 Mass Airflow Sensor Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 (13 lb in)
2 Mass Airflow Sensor/Intake Air Temperature Sensor
Procedure
Disconnect the electrical connector.
