Module Power, Ground, and Serial Data Wiring Schematics

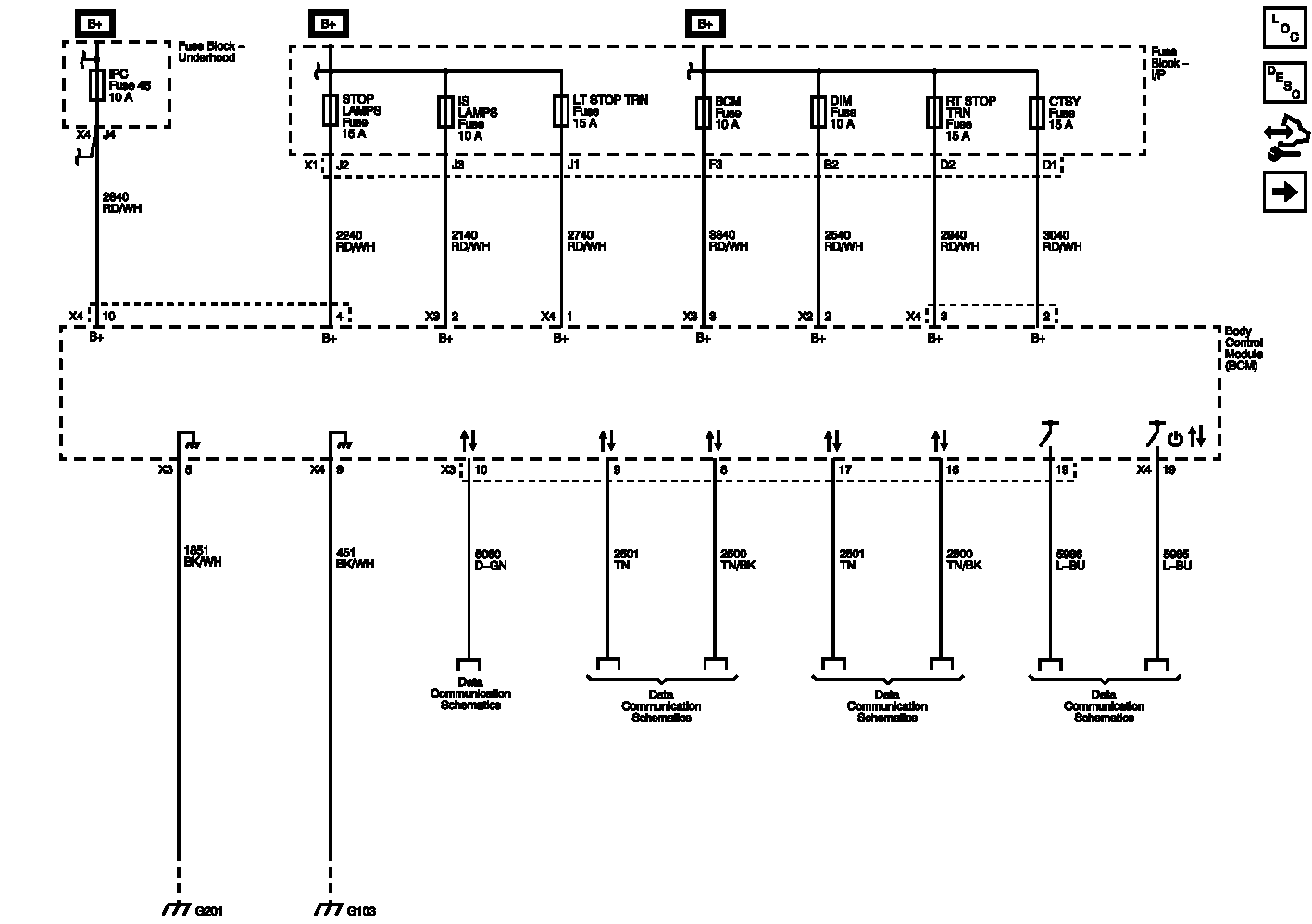

Fig 1: Module Power, Ground, and Serial Data Wiring Schematics
GM2643784Courtesy of GENERAL MOTORS COMPANY
