Power Moding and Interior Light References Wiring Schematics

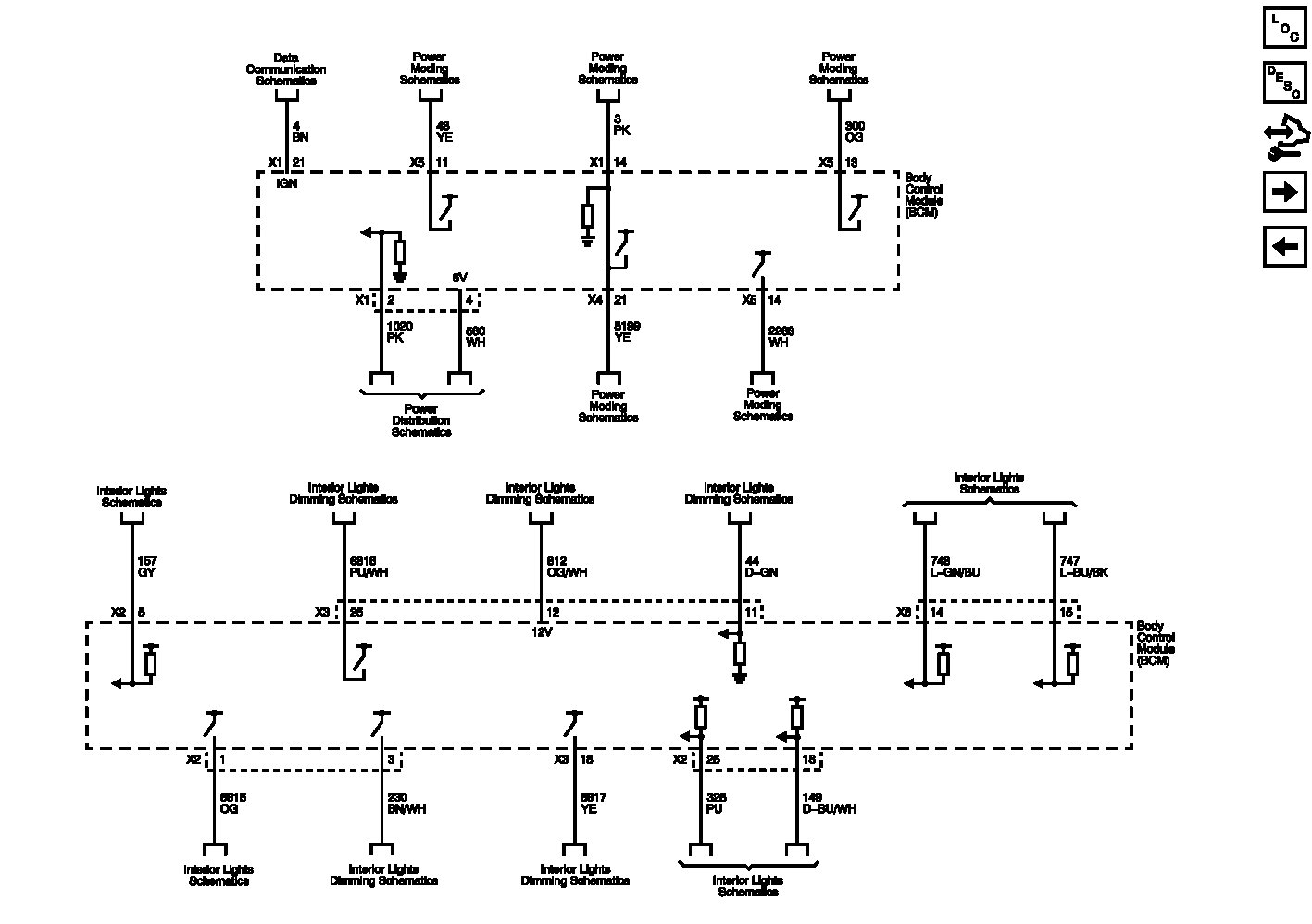

Fig 1: Power Moding and Interior Light References Wiring Schematics
GM2643810Courtesy of GENERAL MOTORS COMPANY
