Serial Data Gateway Module (HP2) Wiring Schematics

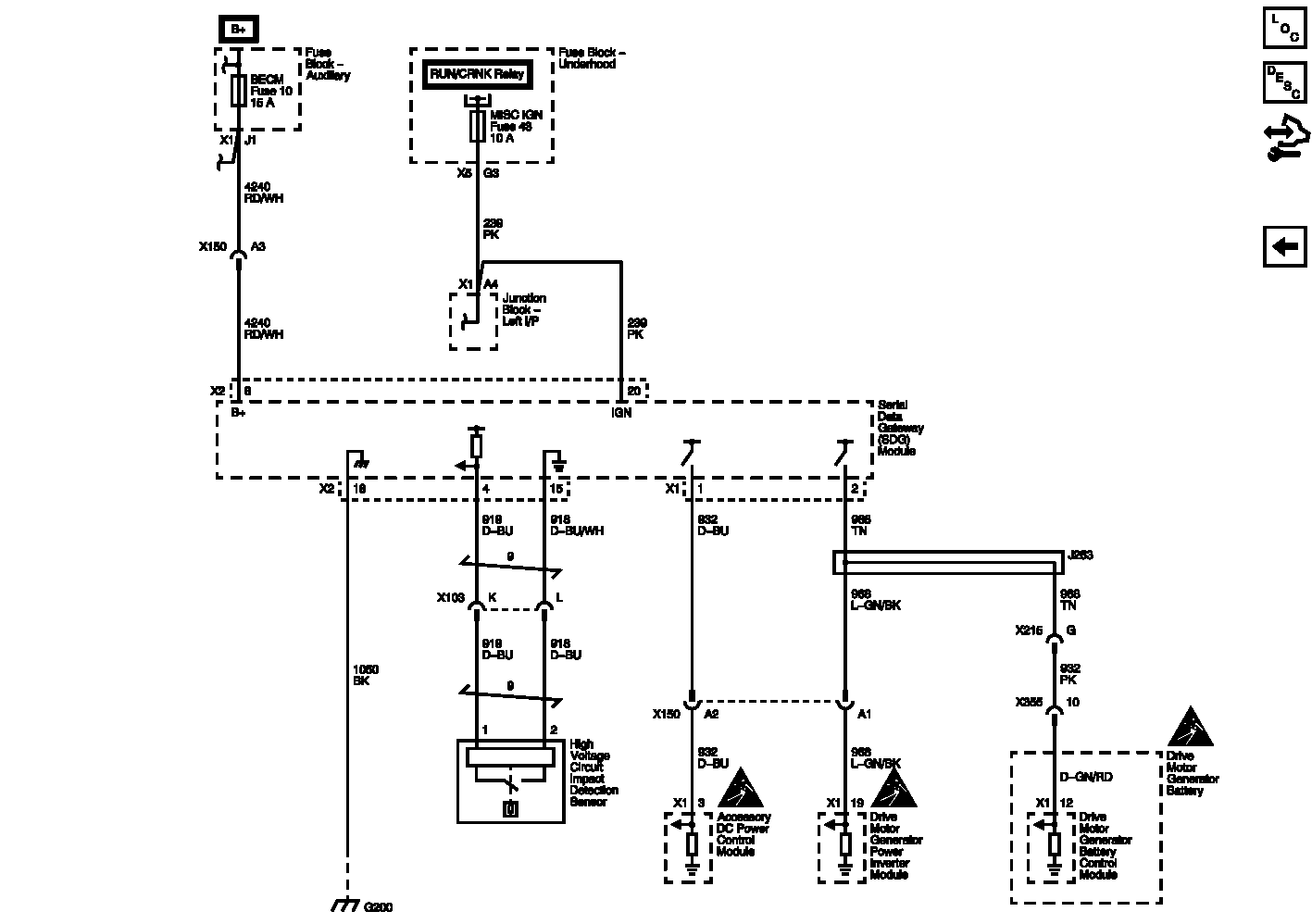

Fig 1: Serial Data Gateway Module (HP2) Wiring Schematics
GM2635384Courtesy of GENERAL MOTORS COMPANY
