Headlamp Control Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

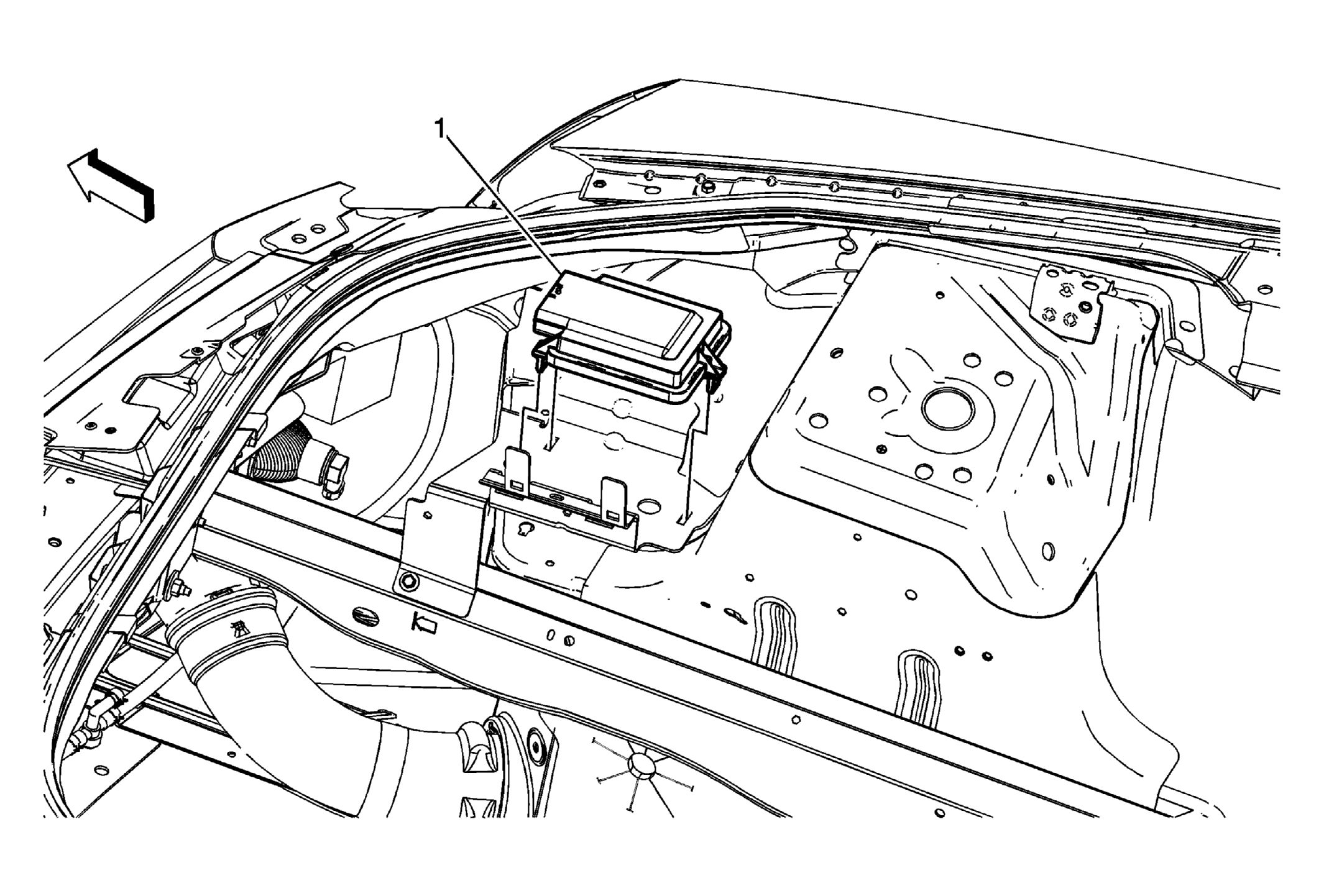

Fig 1: Headlamp Control Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Replacement .
1	Headlamp Control Module Procedure Disconnect the electrical connectors. Unsnap the module from the bracket. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure:
Remove the underhood electrical center. Refer to Underhood Electrical Center or Junction Block Replacement .

Headlamp Control Module

Procedure

Disconnect the electrical connectors.
Unsnap the module from the bracket.
Refer to Control Module References for programming and set up procedures.
