Inflatable Restraint Steering Wheel Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

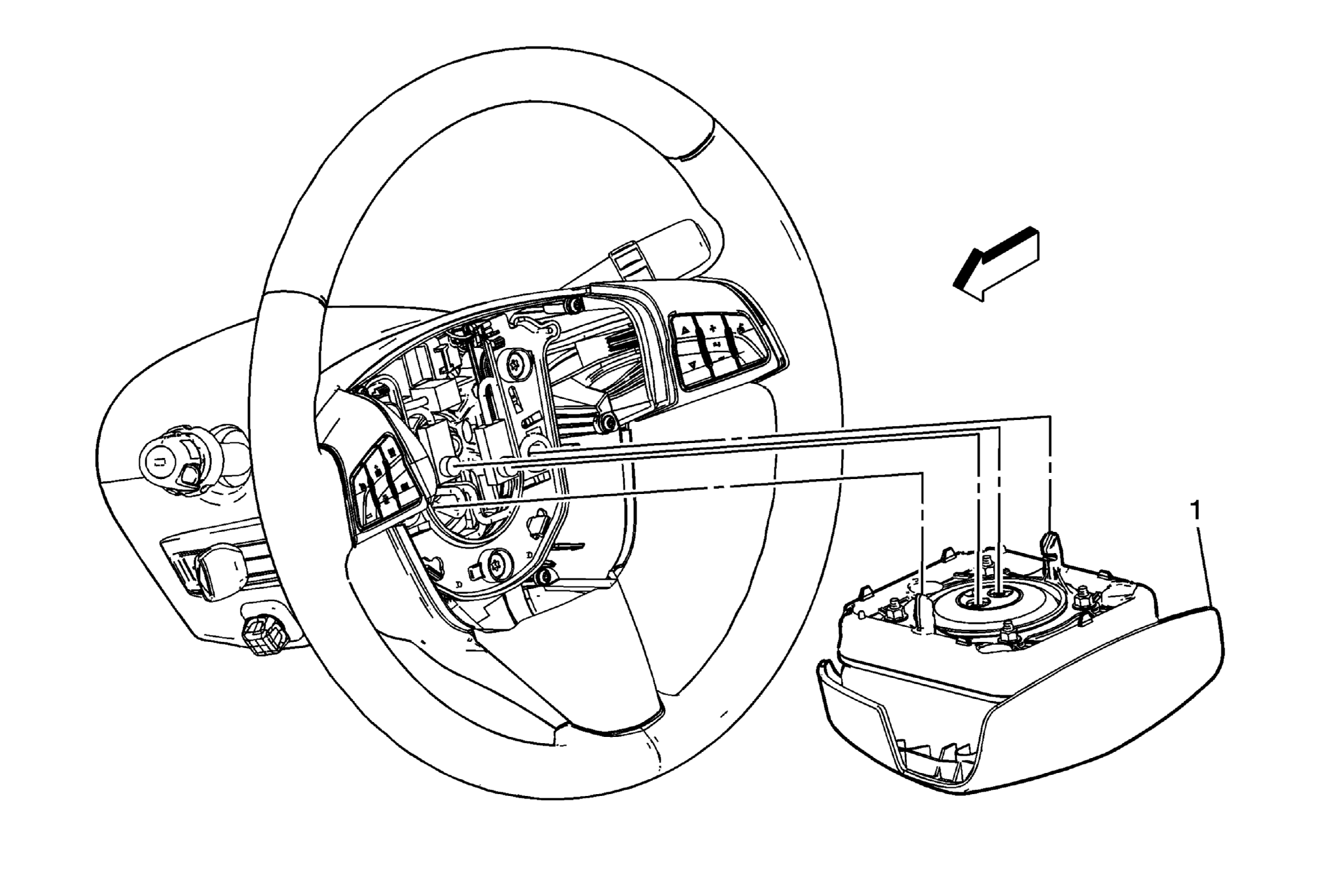

Fig 1: Identifying Inflatable Restraint Steering Wheel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Inflator Module Handling and Storage Caution . CAUTION: Refer to SIR Caution . Preliminary Procedures Disable the SIR system. Refer to SIR Disabling and Enabling . On back side of the steering wheel are 2 circular openings, place the wheel so that one opening is on top. Using a blunt-ended tool, push the spring fastener inward through the access hole. Repeat the step for the other opening.
1	Module, Steering Wheel Inflatable Restraint Procedure Release the connector position assurance (CPA) retainer. Disconnect the electrical connectors. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .

Callout

Component Name

CAUTION: Refer to SIR Inflator Module Handling and Storage Caution .

CAUTION: Refer to SIR Caution .

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
On back side of the steering wheel are 2 circular openings, place the wheel so that one opening is on top.
Using a blunt-ended tool, push the spring fastener inward through the access hole. Repeat the step for the other opening.

Module, Steering Wheel Inflatable Restraint

Procedure

Release the connector position assurance (CPA) retainer.
Disconnect the electrical connectors.
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
