Radio Antenna Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

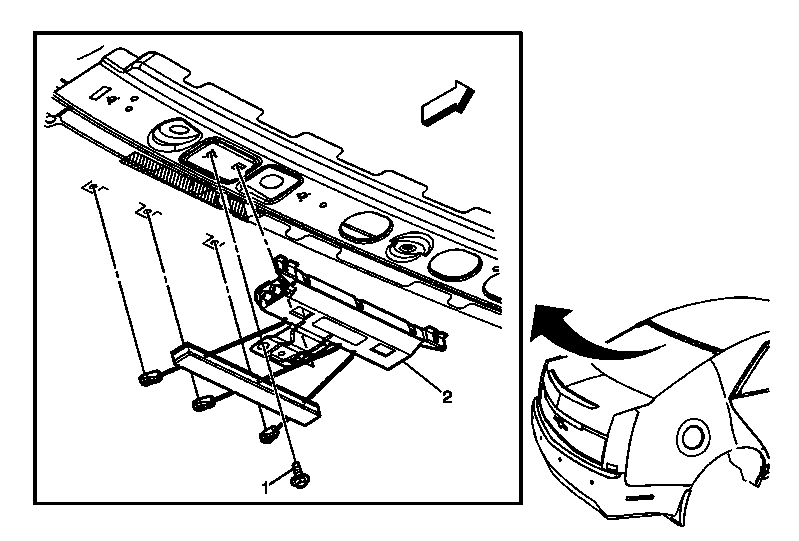

Fig 1: Radio Antenna Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the rear of the headliner trim panel to access the antenna amplifiers. Refer to Headlining Trim Panel Replacement .
1	Radio Antenna Module Bolt (Qty: 1) NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
2	Radio Antenna Module Assembly Procedure Disconnect the electrical connections. Disconnect the antenna cables from the rear glass.

Callout

Component Name

Preliminary Procedure:
Lower the rear of the headliner trim panel to access the antenna amplifiers. Refer to Headlining Trim Panel Replacement .

Radio Antenna Module Bolt (Qty: 1)

NOTE: Refer to Fastener Notice .

Tighten: 9 N.m (80 lb in)

Radio Antenna Module Assembly

Procedure

Disconnect the electrical connections.
Disconnect the antenna cables from the rear glass.
