Electronic Compass Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

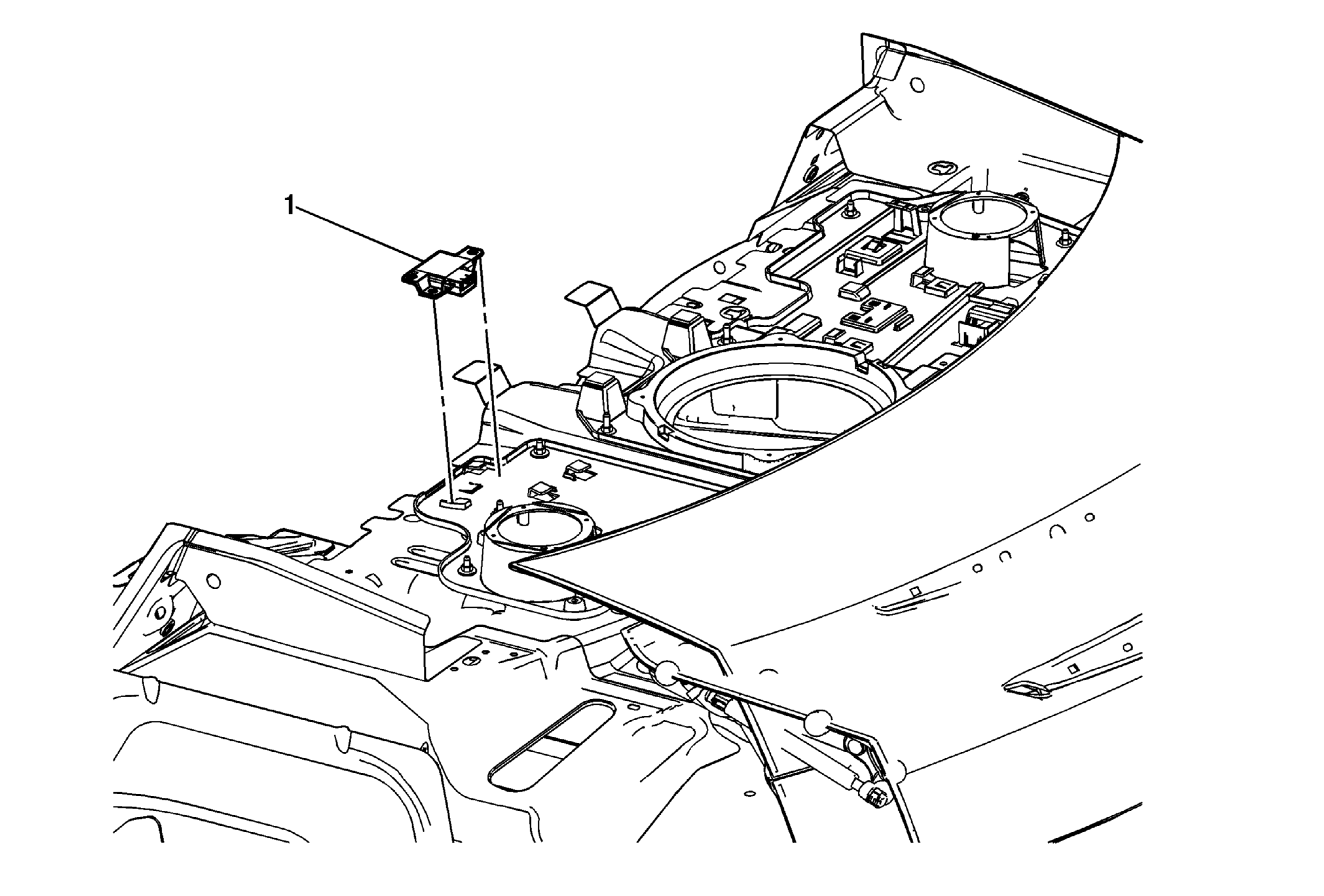

Fig 1: Electronic Compass Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear window shelf trim panel. Refer to Rear Window Panel Trim Replacement .
1	Electronic Compass Module Procedure Disconnect the electrical connectors. For programming and set up information, refer to Control Module References . Unsnap the electronic compass module from the panel.

Callout

Component Name

Preliminary Procedure:
Remove the rear window shelf trim panel. Refer to Rear Window Panel Trim Replacement .

Electronic Compass Module

Procedure

Disconnect the electrical connectors.
For programming and set up information, refer to Control Module References .
Unsnap the electronic compass module from the panel.
