Pedestrian Impact Detection Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

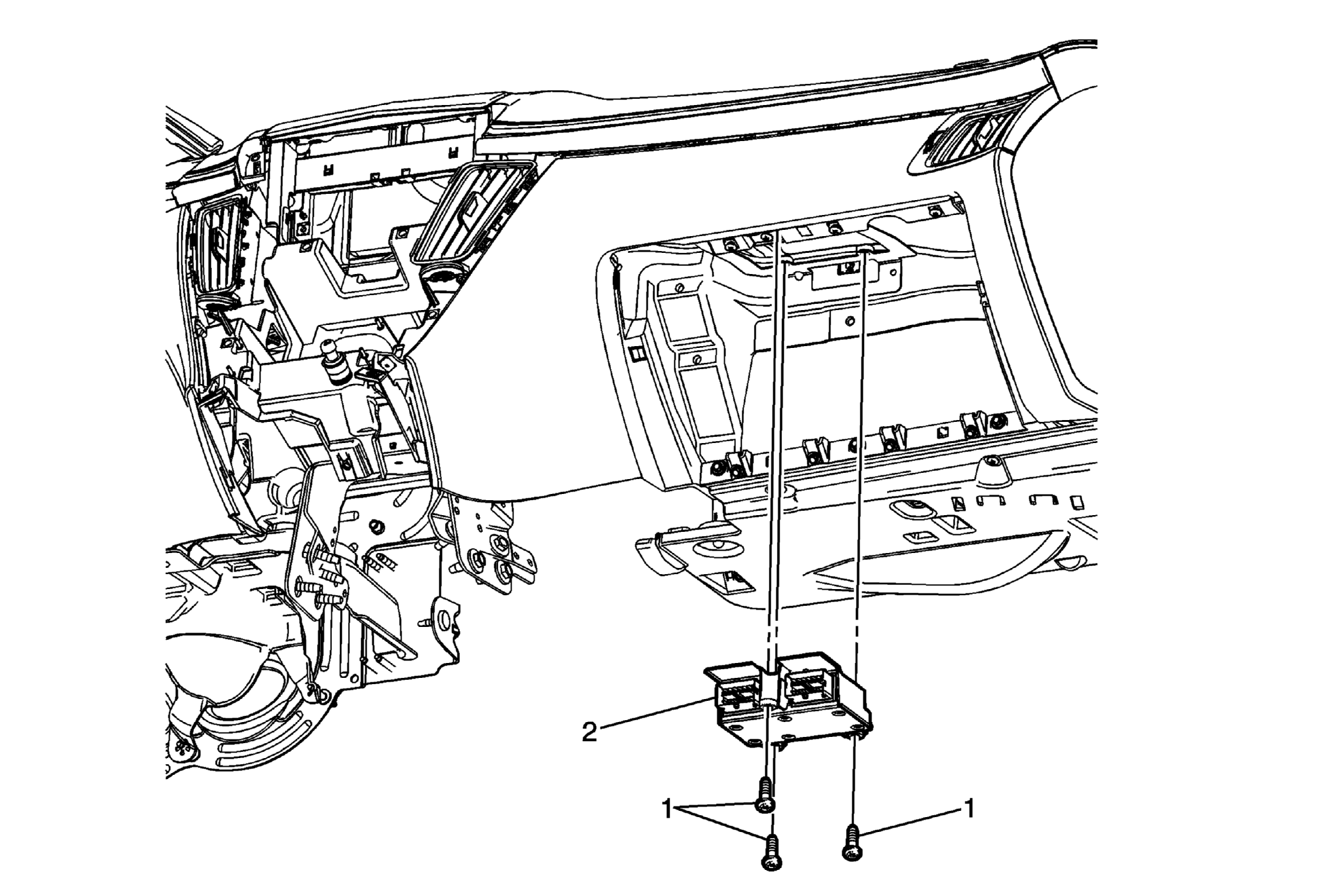

Fig 1: Pedestrian Impact Detection Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the instrument panel (I/P) compartment assembly. Refer to Instrument Panel Compartment Replacement .
1	Pedestrian Impact Detection Module Bolt/Screw (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Pedestrian Impact Detection Module Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure:
Remove the instrument panel (I/P) compartment assembly. Refer to Instrument Panel Compartment Replacement .

Pedestrian Impact Detection Module Bolt/Screw (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 10 N.m (89 lb in)

Pedestrian Impact Detection Module

Procedure

Disconnect the electrical connectors.
Refer to Control Module References for programming and set up procedures.
