Garage Door Opener Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

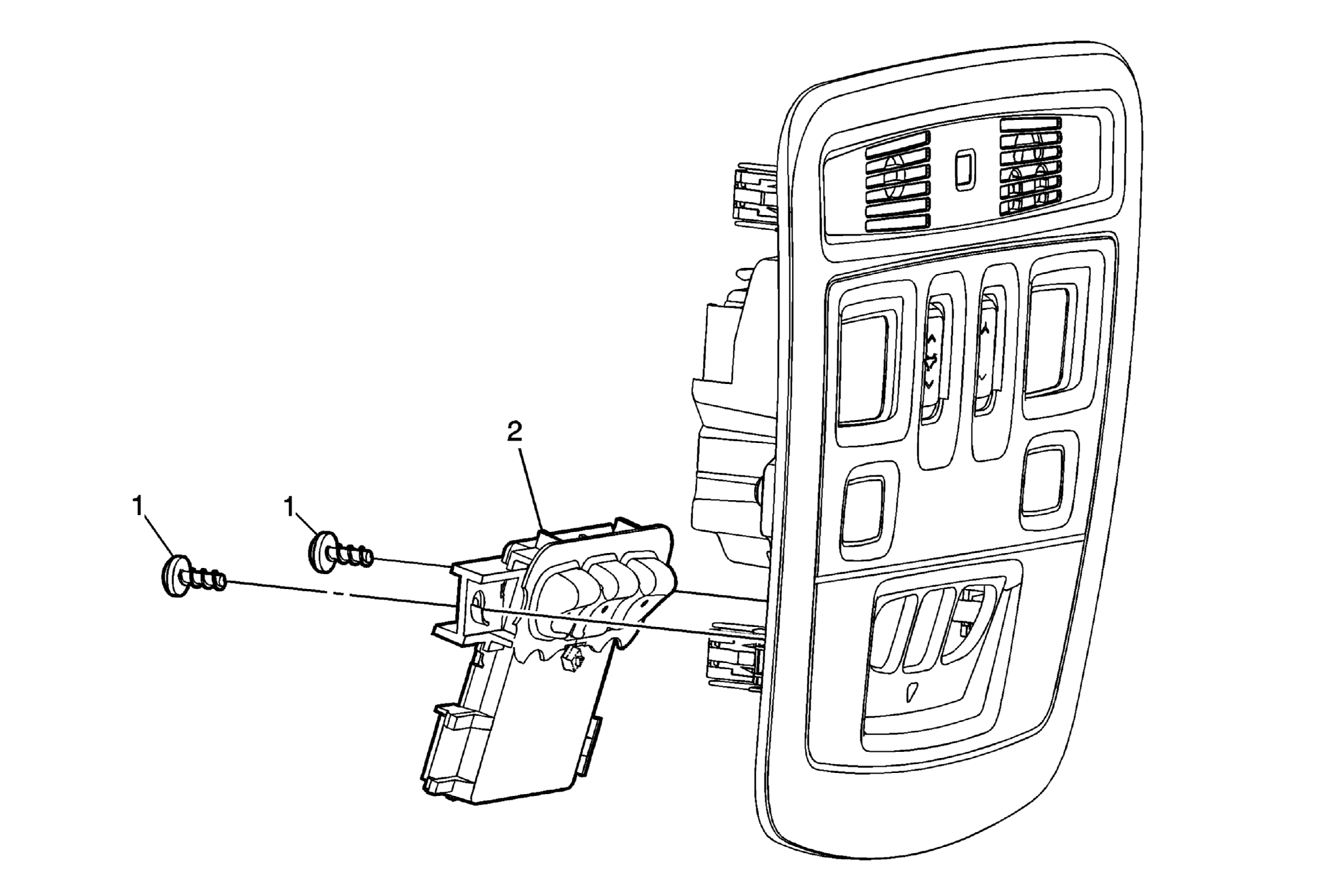

Fig 1: Garage Door Opener Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the roof console. Refer to Roof Console Replacement .
1	Garage Door Opener Bolt/Screws (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2.5 N.m (22 lb in)
2	Garage Door Opener Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set-up procedures.

Callout

Component Name

Preliminary Procedure:
Remove the roof console. Refer to Roof Console Replacement .

Garage Door Opener Bolt/Screws (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 2.5 N.m (22 lb in)

Garage Door Opener

Procedure

Disconnect the electrical connectors.
Refer to Control Module References for programming and set-up procedures.
