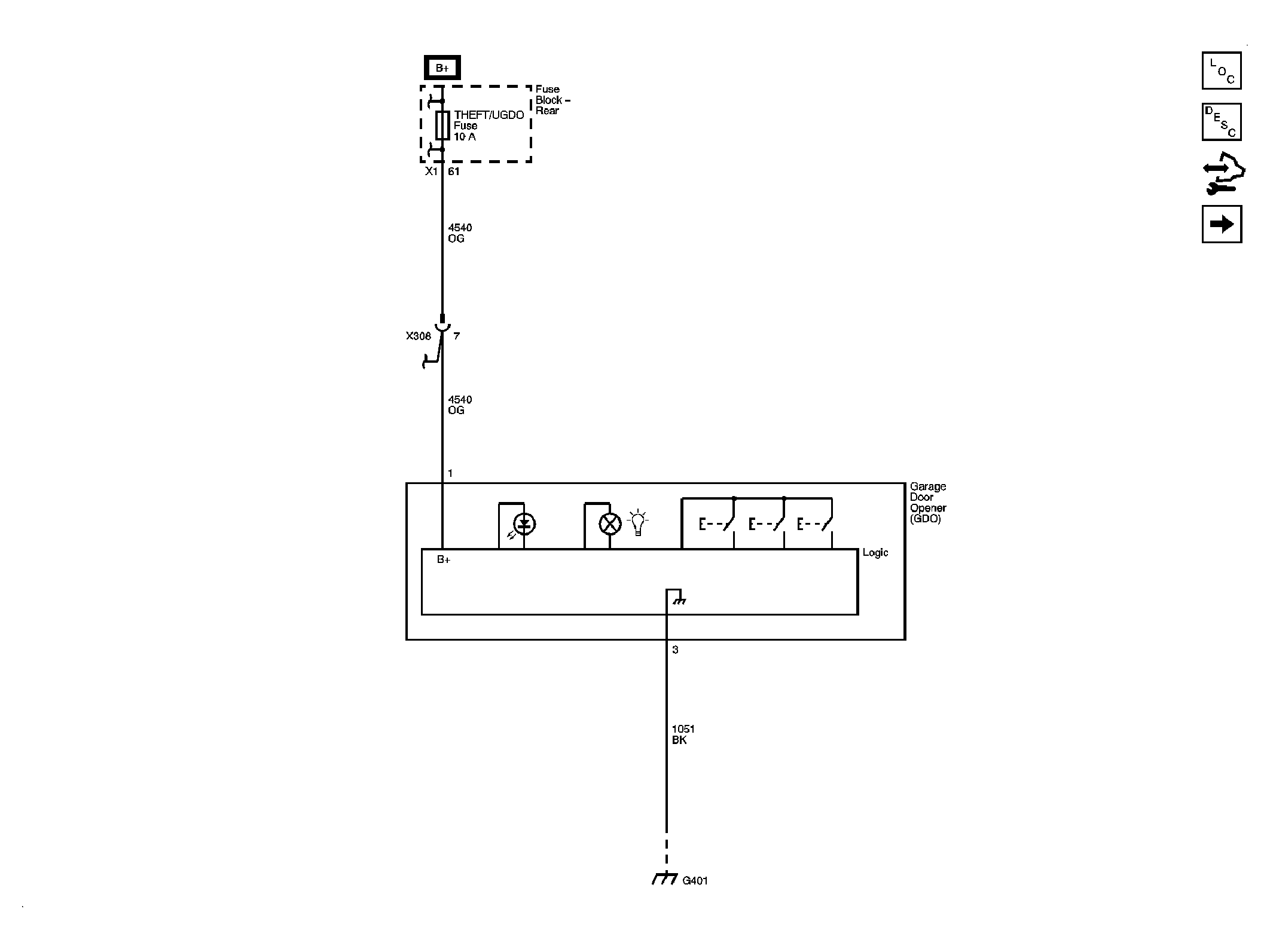

Fig 1: Garage Door Opener - UG1 Schematic
Courtesy of GENERAL MOTORS CORP.

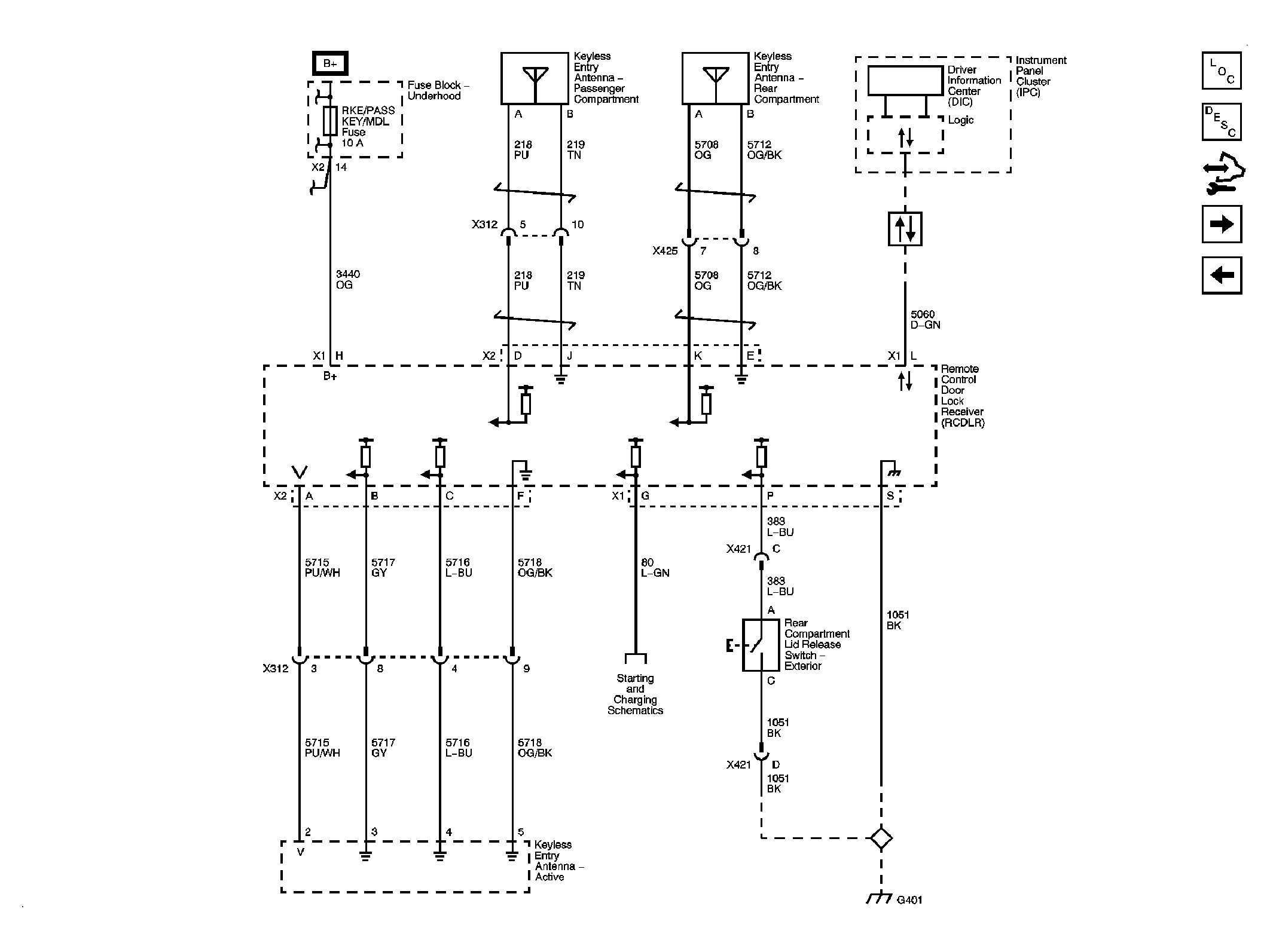

Fig 2: Power, Grounds, Antennas, Indicator and Release Switch Schematic
