Auxiliary Body Control Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

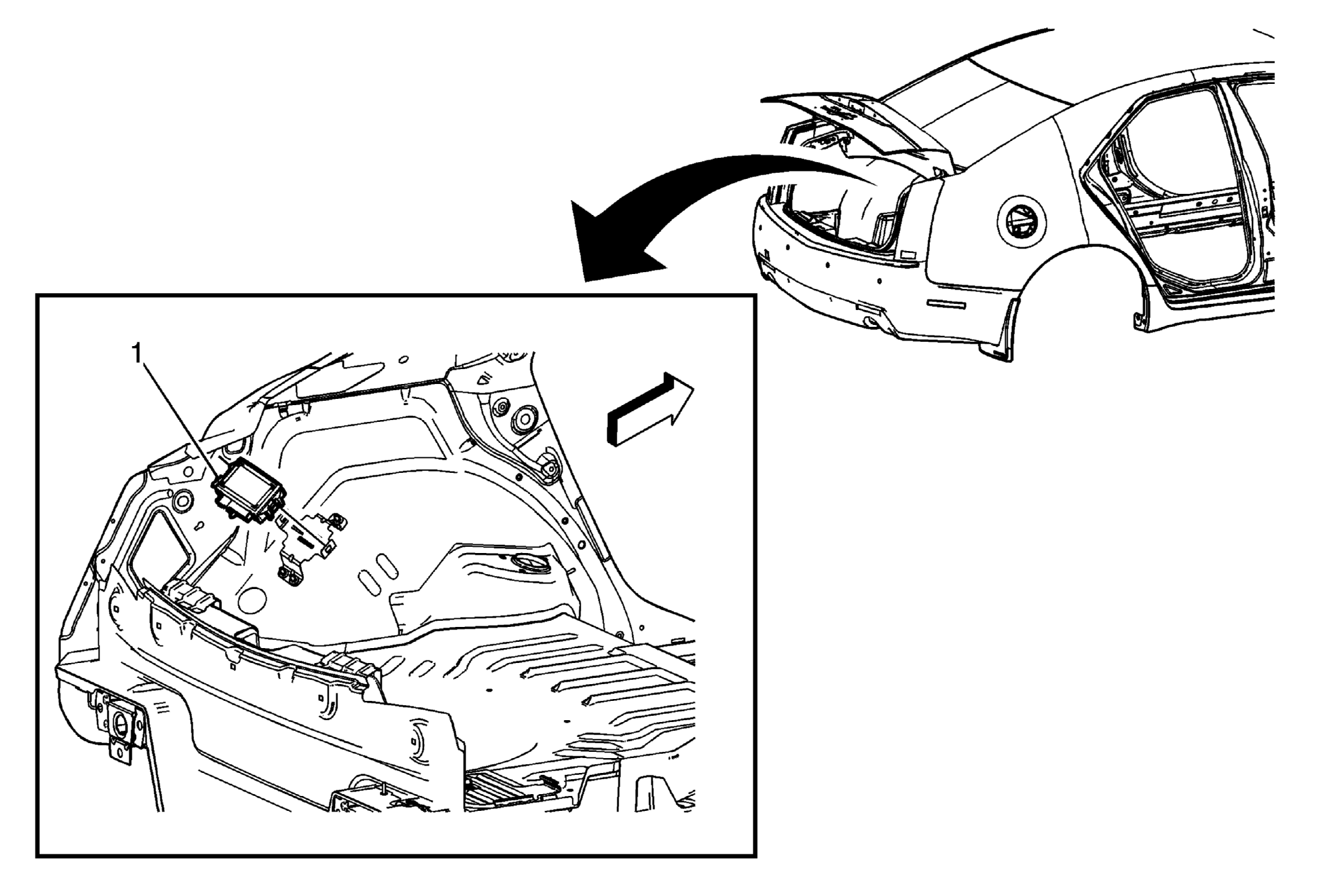

Fig 1: Auxiliary Body Control Module Replacement
GM1968567Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
1 Auxiliary Body Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Refer to Control Module References for programming and set-up information.
