Body Control Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

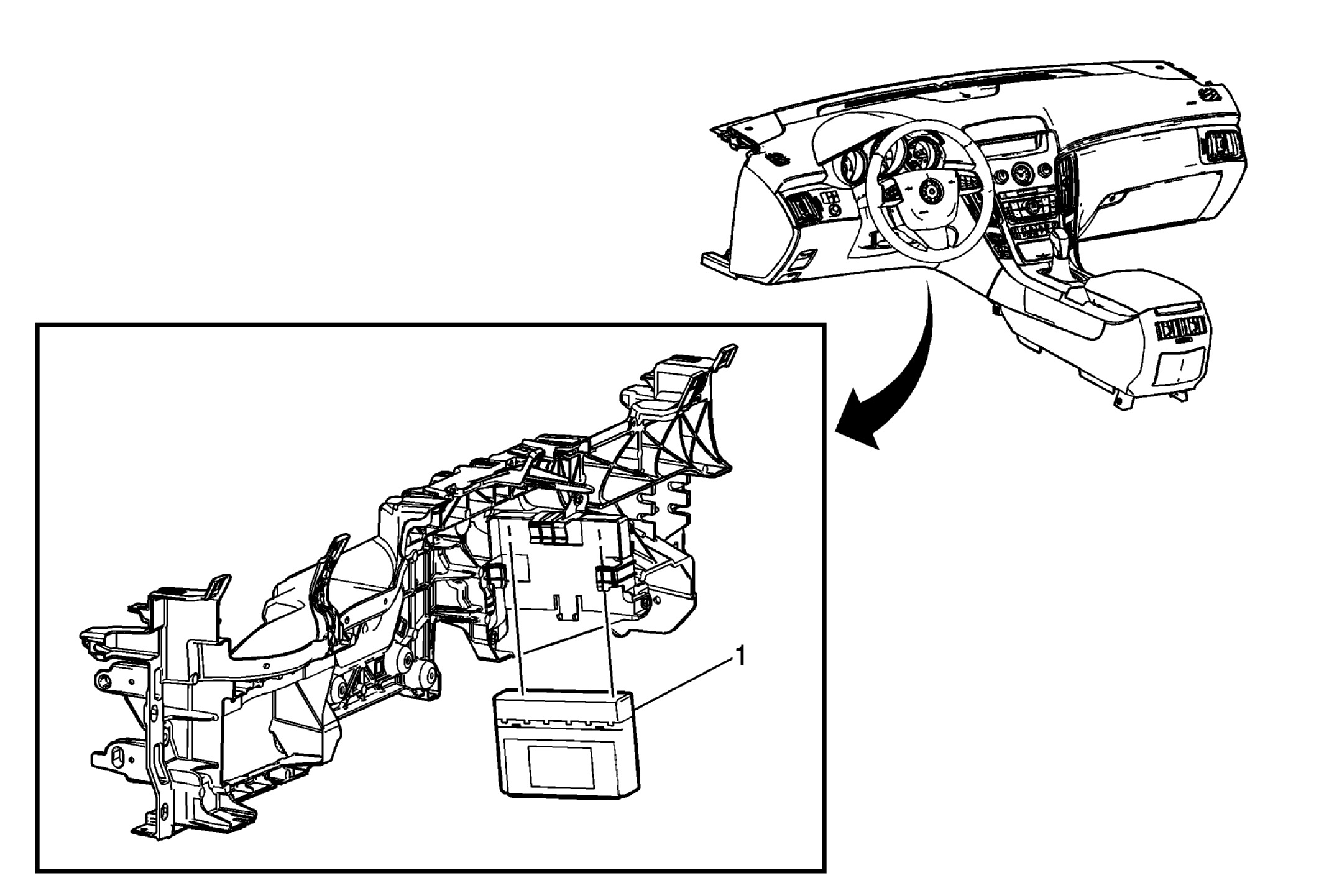

Fig 1: Body Control Module Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel (I/P) insulator. Refer to Instrument Panel Insulator Replacement - Left Side . Remove the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement .
1	Body Control Module (BCM) Procedure Disconnect the electrical connectors. Refer to Control Module References for programming and set-up information.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel (I/P) insulator. Refer to Instrument Panel Insulator Replacement - Left Side .
Remove the driver knee bolster bracket. Refer to Driver Knee Bolster Bracket Replacement .

Body Control Module (BCM)

Procedure

Disconnect the electrical connectors.
Refer to Control Module References for programming and set-up information.
