Remote Function Schematics

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

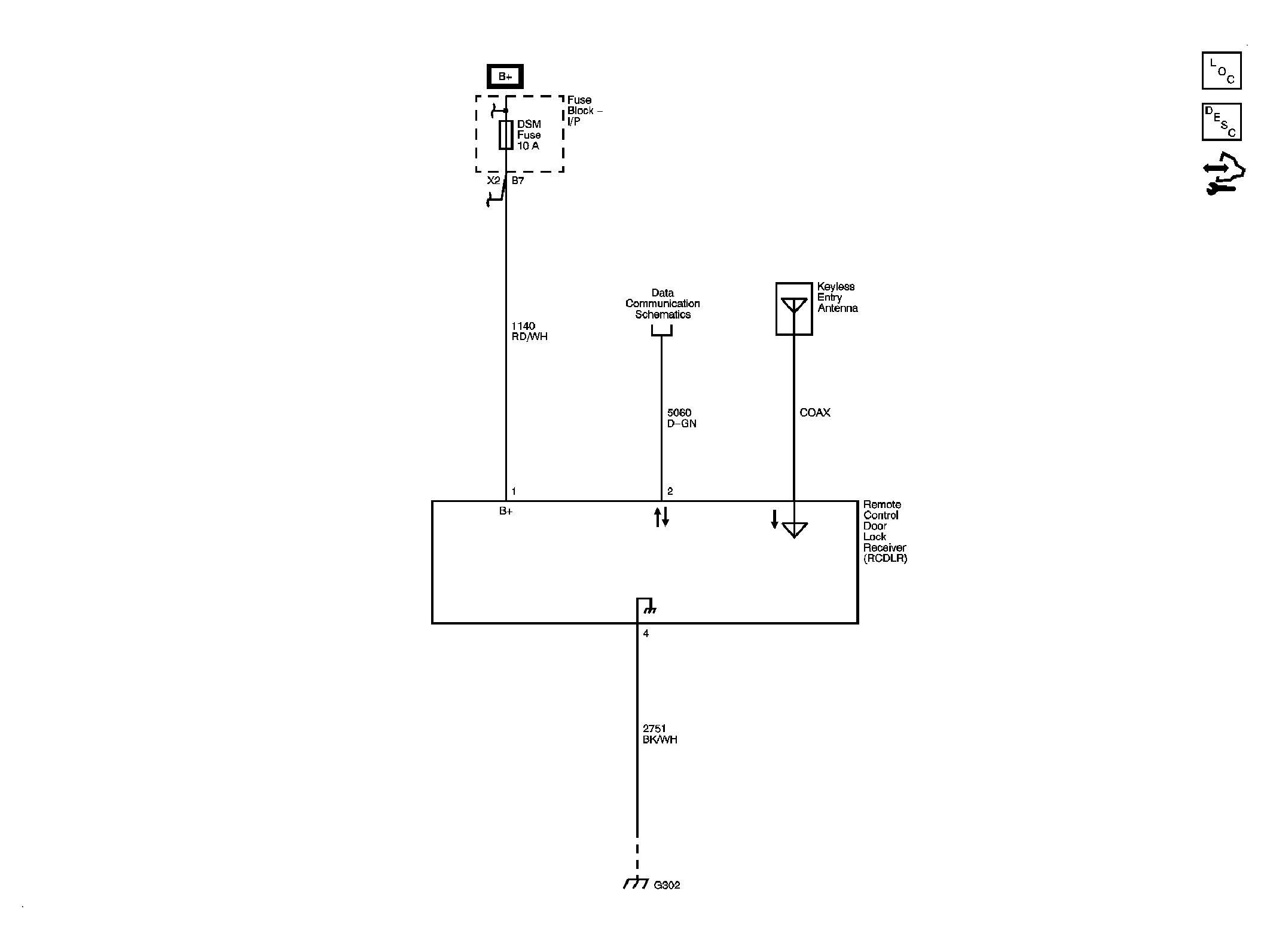

Fig 1: Keyless Entry Schematic (AP3/AP8)

Courtesy of GENERAL MOTORS CORP.

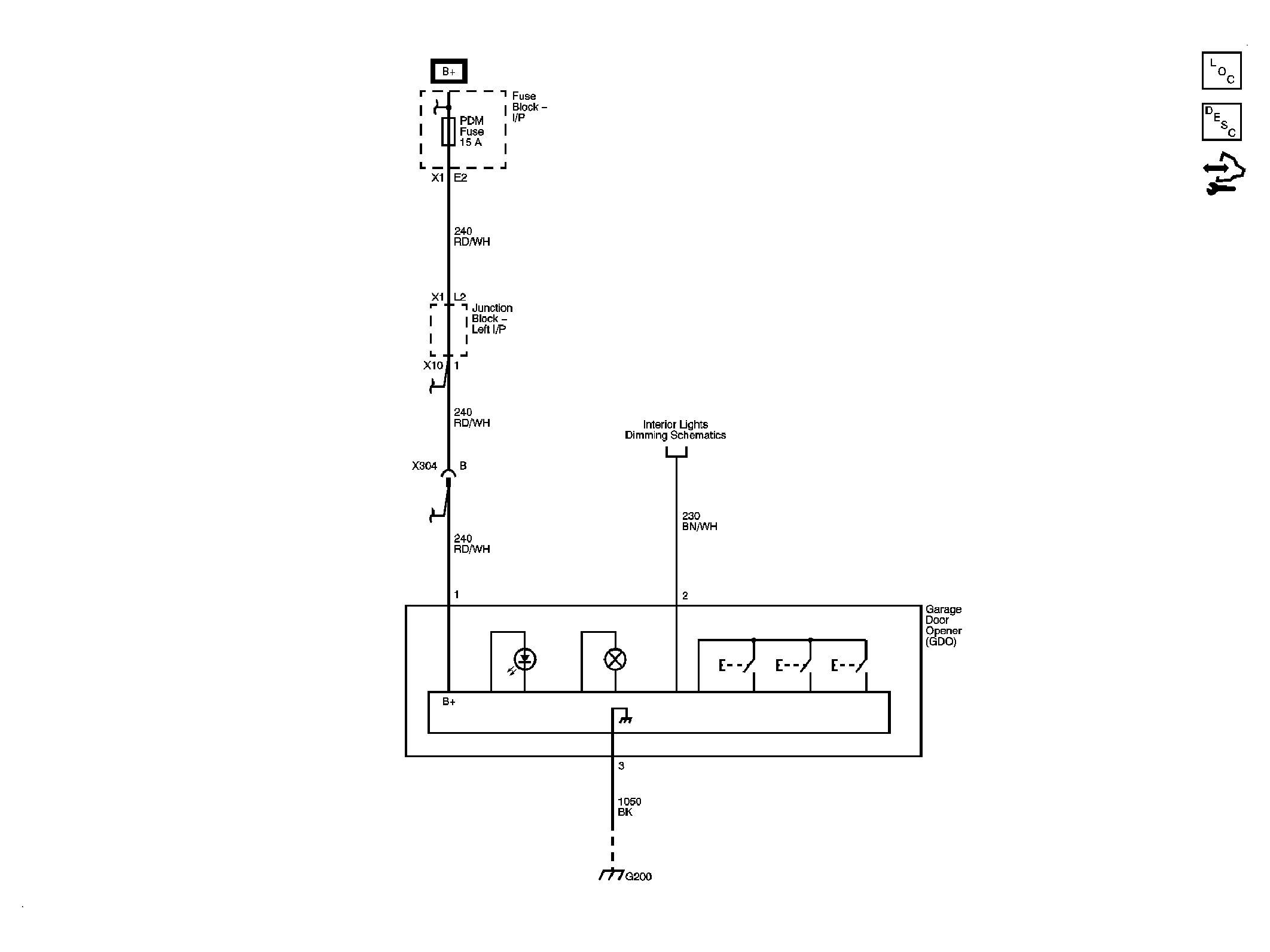

Fig 2: Garage Door Opener Schematic

Courtesy of GENERAL MOTORS CORP.
