Hybrid Controls Electronic Component Views
WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.

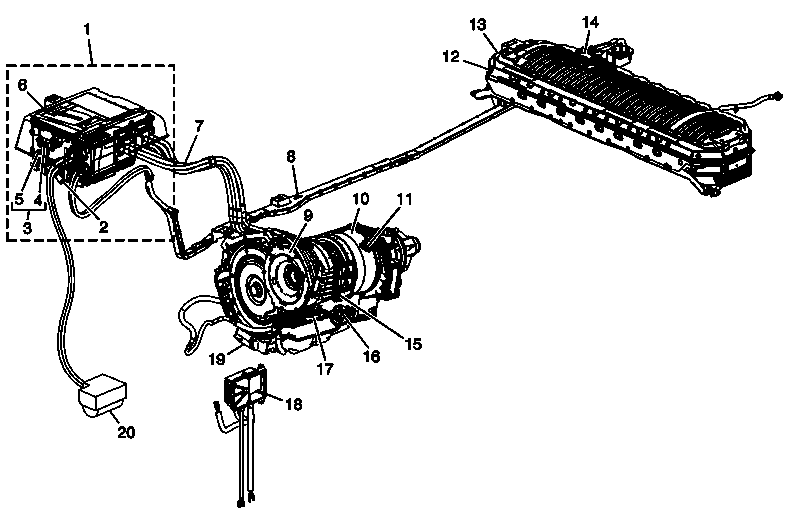

| Callout | Component Name |
|---|---|
| 1 | Drive Motor Generator Control Module Assembly |
| 2 | Accessory DC Power Control Module (APM) Assembly |
| 3 | Drive Motor Generator Power Inverter Module (PIM) Assembly |
| 4 | Hybrid Powertrain Control Module (HPCM) |
| 5 | Motor Control Module (MCM) 1, Motor Control Module (MCM) 2 |
| 6 | Sight Shield Circuit Breaker |
| 7 | Drive Motor Generator Power Inverter Module 3 Phase Cable Assembly |
| 8 | Drive Motor Battery 300 Volt Positive and Negative Cable Assembly |
| 9 | Drive Motor Generator Assembly - 1st Position |
| 10 | Drive Motor Generator Assembly - 2nd Position |
| 11 | A/Trans Output Speed Sensor Assembly |
| 12 | Drive Motor Generator Battery |
| 13 | Drive Motor Generator Battery Control Module Assembly |
| 14 | Drive Motor Battery Cable Terminal Extension Cover Circuit Breaker |
| 15 | Drive Motor Generator Power Inverter Module 3 Phase Cable Cover Circuit Breaker |
| 16 | A/Trans Manual Shift Shaft Position Switch Assembly |
| 17 | Control Solenoid w/Body and TCM Valve Assembly |
| 18 | A/Trans Auxiliary Fluid Pump Control Module Assembly |
| 19 | A/Trans Auxiliary Fluid Pump Assembly |
| 20 | 300 Volt AC Compressor w/Control Module Assembly |

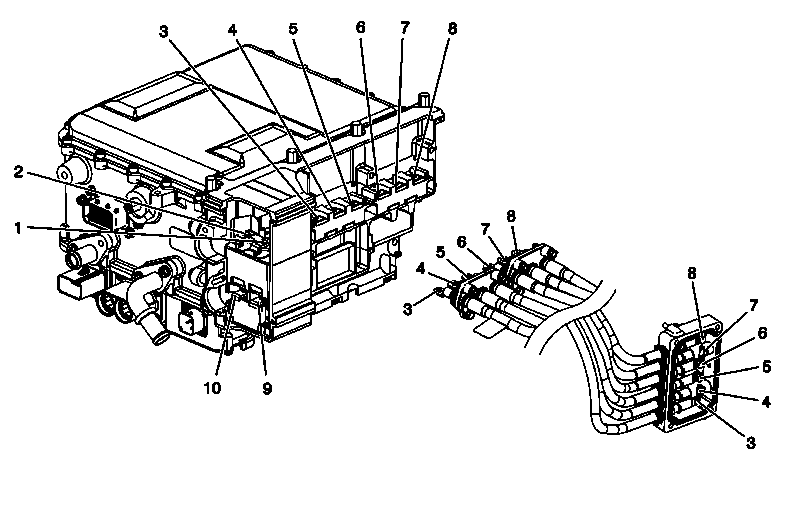

| Callout | Component Name |
|---|---|
| 1 | Air Conditioner Compressor 300 V B- |
| 2 | Air Conditioner Compressor 300 V B+ |
| 3 | Motor 2 Phase U |
| 4 | Motor 2 Phase W |
| 5 | Motor 2 Phase V |
| 6 | Motor 1 Phase U |
| 7 | Motor 1 Phase W |
| 8 | Motor 1 Phase V |
| 9 | Drive Motor Generator Battery 300 V B- |
| 10 | Drive Motor Generator Battery 300 V B+ |
| Callout | Component Name |
|---|---|
| 1 | Accessory DC Power Control Module Tray Bracket to Accessory DC Power Control Module Tray Assembly Nut |
| 2 | Accessory DC Power Control Module Tray Bracket to Front Fender Inner Panel Stud Nut |
| 3 | Accessory DC Power Control Module Tray Bracket |
| 4 | Accessory DC Power Control Module to A/C Support Bracket Bolt |
| 5 | Accessory DC Power Control Module Tray Bracket to Accessory DC Power Control Module Tray Assembly Nut |
| 6 | Accessory DC Power Control Module Tray Assembly |
| 7 | Accessory DC Power Control Module Tray Bracket to Battery Tray Bracket Studs |
| 8 | Accessory DC Power Control Module Tray Bracket |
