Drive Motor Generator Control Module Sight Shield Replacement: Removal
WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the fender brace. Refer to Front Fender Rear Upper Bracket Replacement .

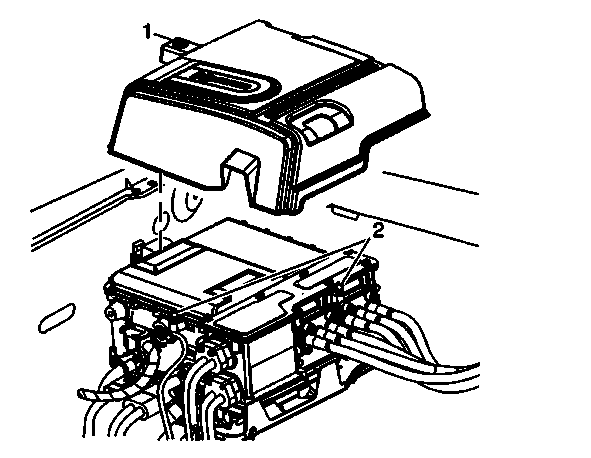

- Loosen the sight shield fastener (1) and lift the sight shield from the ball studs (2).
- Identify how to disable high voltage.
- Identify how to test for the presence of high voltage.
- Identify condition under which high voltage is always present and personal protection equipment (PPE) and proper procedures must be followed.
- Perform the High Voltage Disabling procedure. Refer to High Voltage Disabling .
IMPORTANT:
Removing the sight shield disengages the High Voltage Interlock Circuit (HVIC). The sight shield mounting fastener must be installed and properly tightened for the HVIC to be closed. Failure to properly tighten the sight shield fastener may result in an open HVIC condition and DTCs.
WARNING:
Always perform the High Voltage Disabling procedure prior to servicing any High Voltage component or connection. Personal Protection Equipment (PPE) and proper procedures must be followed.
The High Voltage Disabling procedure will perform the following tasks:
Failure to follow the procedures exactly as written may result in serious injury or death.
The High Voltage Disabling procedure will perform the following tasks:
Failure to follow the procedures exactly as written may result in serious injury or death.
