Body Control Module Bracket Replacement

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

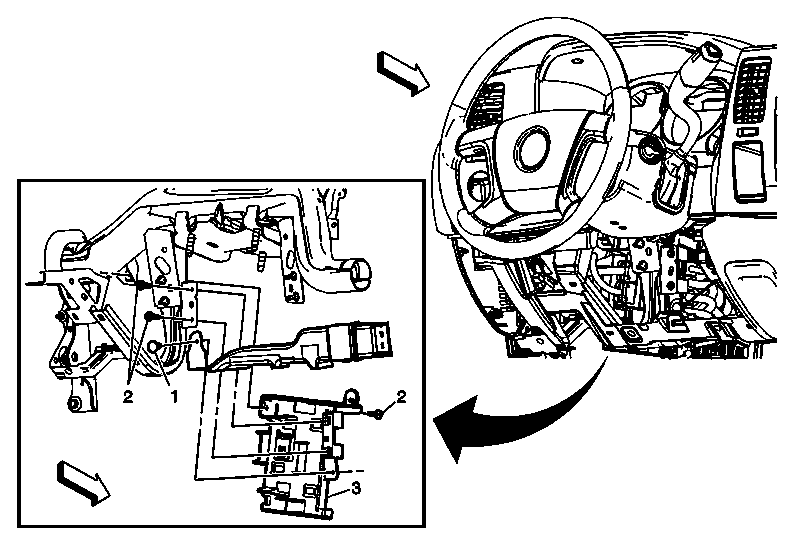

Fig 1: View Of Front Floor Heater Duct Retainer, BCM Bracket Assembly & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the knee bolster panel. Refer to Knee Bolster Replacement (With RPO SLT) or Knee Bolster Replacement (Without RPO SLT) . Remove the instrument panel driver knee bolster deflector. Refer to Instrument Panel Driver Knee Bolster Deflector Replacement (With RPO SLT) or Instrument Panel Driver Knee Bolster Deflector Replacement (Without RPO SLT) .
1	Front Floor Heater Duct Retainer
2	Body Control Module Bracket Screws (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
3	Body Control Module Bracket Assembly
