Body Control Module Replacement

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

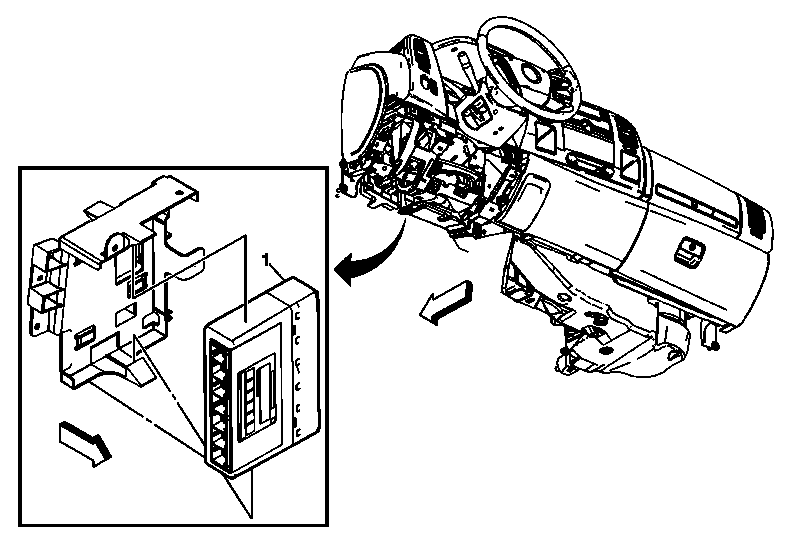

Fig 1: View Of Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the knee bolster. Refer to Knee Bolster Replacement (With RPO SLT) or Knee Bolster Replacement (Without RPO SLT)
1	Body Control Module Tip: Remove the BCM cover. Disconnect the electrical connectors. Press on the tabs to release the body control module. If a replacement module is installed, program the module. Refer to Control Module References .
