Rearview Camera Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

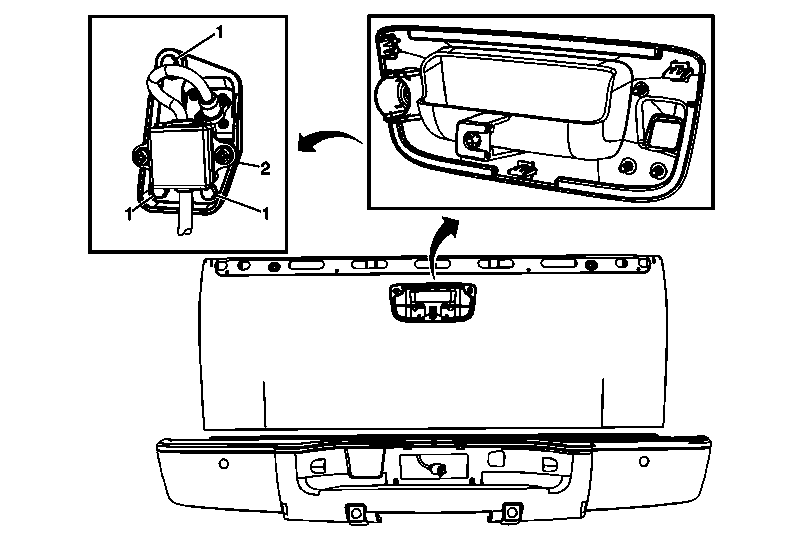

Fig 1: Identifying Rearview Camera

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the pickup box endgate latch handle bezel. Refer to Pickup Box Endgate Latch Handle Bezel Replacement (Pickup) or Pickup Box Endgate Latch Handle Bezel Replacement (Utility) .
1	Rear Object Camera Nut CAUTION: Refer to Fastener Caution . Tip: The rearview camera and the rearview control module are replaced as a complete assembly. Tighten: 2 N.m (18 lb in)
2	Rear Object Camera Procedure Remove the endgate to assist in removal of the grommet and electrical connector with harness. Refer to Endgate Replacement . Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure:
Remove the pickup box endgate latch handle bezel. Refer to Pickup Box Endgate Latch Handle Bezel Replacement (Pickup) or Pickup Box Endgate Latch Handle Bezel Replacement (Utility) .

Rear Object Camera Nut

CAUTION: Refer to Fastener Caution .

Tip: The rearview camera and the rearview control module are replaced as a complete assembly.

Tighten: 2 N.m (18 lb in)

Rear Object Camera

Procedure

Remove the endgate to assist in removal of the grommet and electrical connector with harness. Refer to Endgate Replacement .
Disconnect the electrical connector.
