Instrument Panel Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

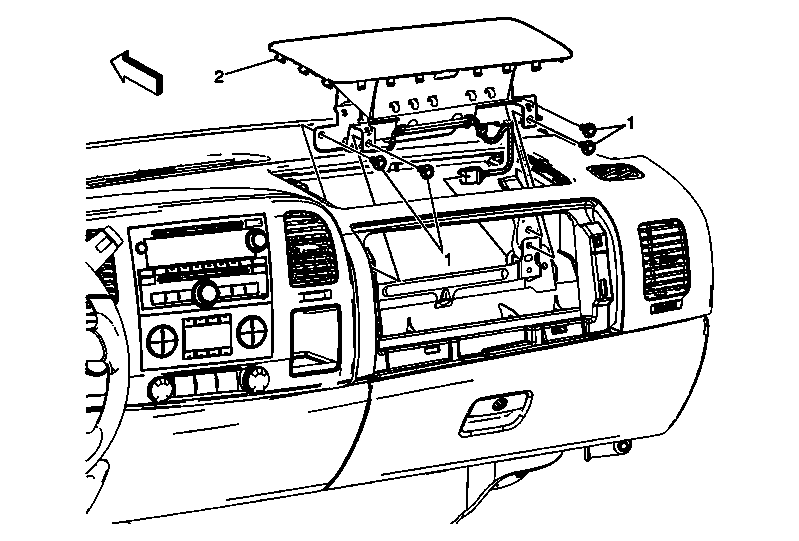

Fig 1: Instrument Panel Inflatable Restraint Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove instrument panel upper compartment assembly. Refer to Instrument Panel Upper Compartment Replacement .
1	Instrument Panel Inflatable Restraint Module Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Instrument Panel Inflatable Restraint Module Tip: Using a plastic flat-bladed tool, pull up on module to disengage retainers. Disconnect the electrical connectors. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove instrument panel upper compartment assembly. Refer to Instrument Panel Upper Compartment Replacement .

Instrument Panel Inflatable Restraint Module Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Instrument Panel Inflatable Restraint Module
Tip:

Using a plastic flat-bladed tool, pull up on module to disengage retainers.
Disconnect the electrical connectors.
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping .
