Instrument Panel Inflatable Restraint Module Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

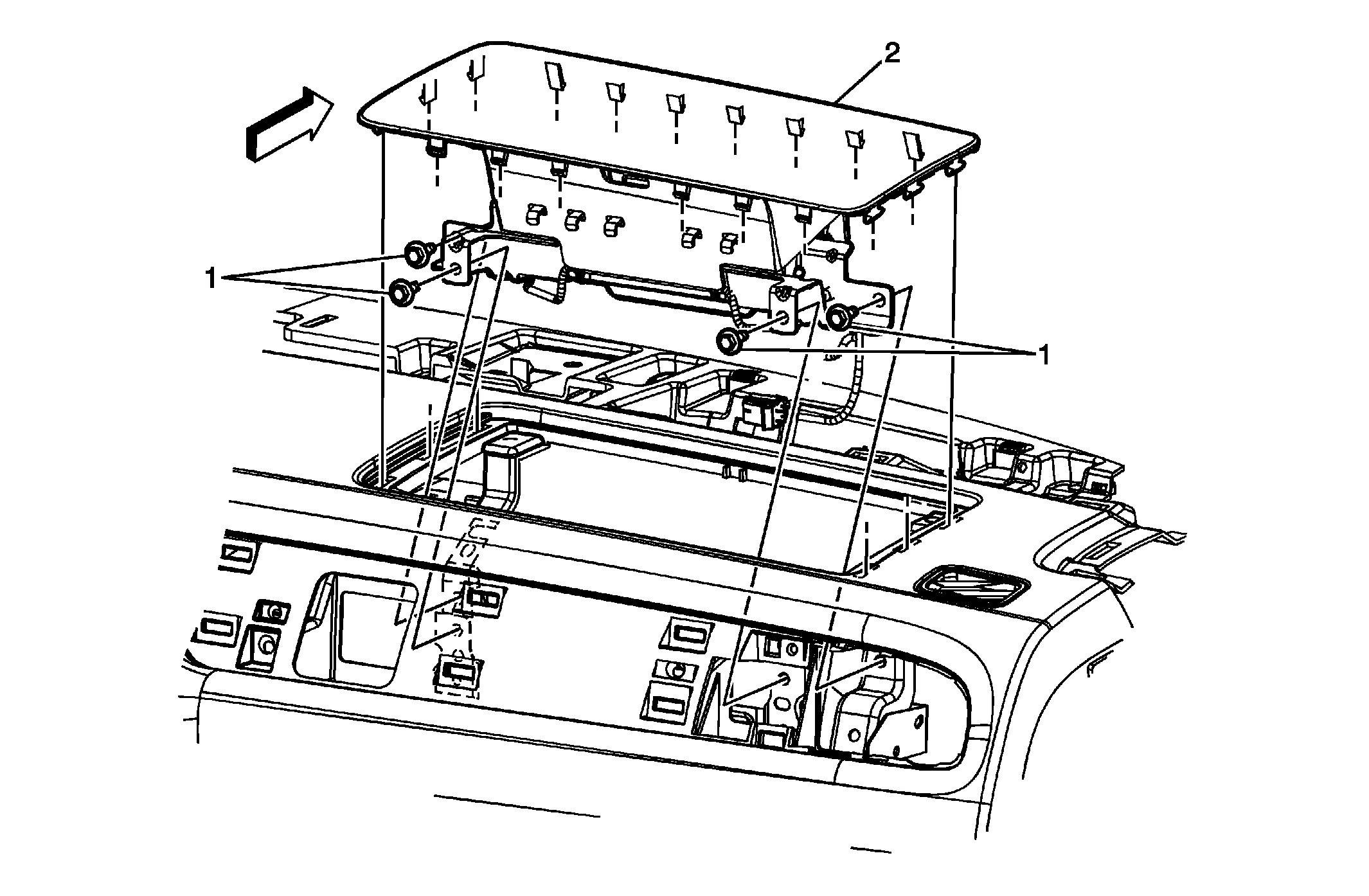

Fig 1: Instrument Panel Inflatable Restraint Module And Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Cadillac) , Instrument Panel Center Trim Panel Replacement (Except Cadillac) .
1	Instrument Panel Inflatable Restraint Module Bolt (Qty: 4)
2	Instrument Panel Inflatable Restraint Module Using a plastic flat-bladed tool, pull up on module to disengage retainers. Disconnect the electrical connectors. Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping (Europe) , Inflatable Restraint Module Handling and Scrapping (Except Europe) .

Callout

Component Name

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove instrument panel center trim panel. Refer to Instrument Panel Center Trim Panel Replacement (Cadillac) , Instrument Panel Center Trim Panel Replacement (Except Cadillac) .

Instrument Panel Inflatable Restraint Module Bolt (Qty: 4)

Instrument Panel Inflatable Restraint Module

Using a plastic flat-bladed tool, pull up on module to disengage retainers.
Disconnect the electrical connectors.
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflatable Restraint Module Handling and Scrapping (Europe) , Inflatable Restraint Module Handling and Scrapping (Except Europe) .
